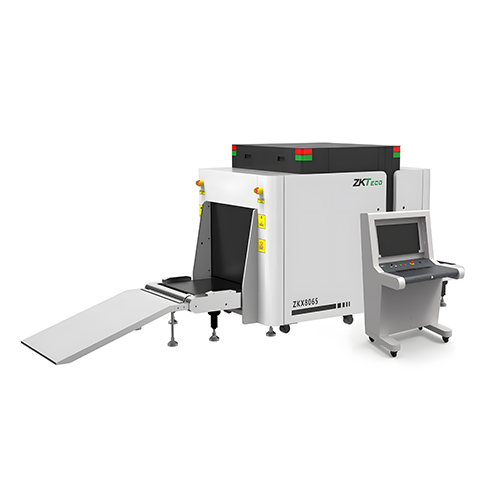

ZKX8065

ZKX8065 X-ray Inspection System features a tunnel opening of 800 mm (W) x650 mm (H) and is designed for bags, parcels, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort , allowing it to be placed in factories, shopping malls, transportation hubs, and similar locations. The ZKX8065 X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as image processing algorithm, to provide clear scanning images. This allows operators to visually identify potential threat items.

Parameters

General Specifications
Tunnel Size (W x H)

800mm * 650mm
Conveyor Speed

0.20 m/sec
Conveyor Load (Max. Load)

180kg (Adequate distribution)
Conveyor Height

375mm
Detector

Dual-energy Detector
View

Single-view
Supported Software

ZKBio SIS
Communication Interface

RJ45(TCP/IP)
Dimensions (L * W * H)

2924mm * 1207mm *1500mm
Console Dimensions (L * W * H)

747mm * 706mm * 1279mm
Package Dimensions (L * W * H)

2200mm *1300mm * 1700mm
Console Package Dimensions (L * W * H)

890mm * 840mm * 1502mm
Gross Weight (with Package)

840kg+140kg (Console)
Net Weight

700kg+100kg (Console)
Film Safety

ASA/ISO1600
Certifications

CE-EMC, CE-MD, FCC sDOC
X-ray Generator & Image Performance
Anode Voltage

80-160kV (adjustable)
Tube Current

0.3-1.0mA(adjustable)
Wire Resolution

36AWG
Steel Penetration

34mm
Spatial Resolution

HorizontalΦ1.3mm / VerticalΦ1.3mm
Penetration Resolution

32AWG
Generator Cooling

Sealed Oil Bath with Forced Air
Beam Direction

Vertically Upward
X-ray Converter

L-shaped Detector Line
Computer
Operating System

Windows 10
Processor

i5-10500H
RAM

8GB
Hard Drive

1TB HDD
Max Storage

Up to 100,000 Scanned Images
Monitor

21.5"Color LED Screen (1920 x 1080P)
Operating Environment
System Power

220 VAC +/- 10% 50/60Hz
110 VAC +/- 10% 50/60Hz
Power Consumption

< 800W
Noise Level

< 58dB(A)
Operating Temperature

-10°C to +45°C
Storage Temperature

-20°C to +60°C
Humidity

5-95%, Non-condensing
Health & Safety
Radiation Leak Dosage

< 0.5μSv/h (10cm From the Surface)
Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems
