Parameters

• Model

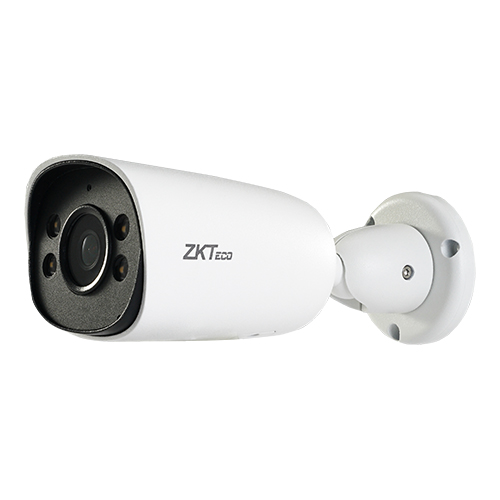

  BS-852E11T-S3-C-MI-SE

• Image Sensor

  1/2.9” 2MP CMOS

• Max.Resolution

  1920(H)*1080(V)

• ROM

  128MB

• RAM

  256MB

• Scanning System

  Progressive Scan

• Electronic Shutter Speed

  1/5 s to1/100,000 s

• Min. Illumination

  0.001Lux@F1.0 (AGC on, Color)

• S/N Ratio

  >52dB

• White Light Range

  20 m

• Illuminator On/Off Control

  Auto / Manual

• Illuminator Number

  4*White Light LED

• Smart IR

  N/A

• Angle Adjustment for Installation

  Pan: 0°–360°
  Tilt: 0°–90°
  Rotation: 0°–360°

• TV System

  PAL/NTSC

• Image Settings

  Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser

• Software Reset Default

  Support

• General Function

  Heartbeat, Mirror, Privacy mask, Log, Password reset

• Lens

• Lens Type

  Fixed Lens

• Lens Mount

  M12

• Mount Type

  Board-in

• Focal Length

  2.8 mm

• Max. Aperture

  F1.0

• Optical Zoom

  N/A

• Field of View

  FOV: 118°
  Horizontal: 88°
  Vertical: 45°
  Diagonal: 105°

• Iris Type

  Fixed

• Close Focus Distance

  1.5 m

• DORI Distance

  Lens: 2.8 mm
  Detect: 43 m
  Observe: 16 m
  Recognize: 9 m
  Identify: 4 m

• Video

• Video Compression

  H.265 / H.264

• Video Stream Capability

  Triple streams

• Recording Resolution

  1080P (1920*1080) / 1.3MP (1280*960) /720P (1280*720) / D1 (704*576) / VGA (640*480) /
  Q720 (640*360)

• Max Video Frame Rate

  Main stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720); 60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720)
  Sub stream: 50Hz (PAL): 25fps (704*576, 640*480, 640*360); 60Hz (NTSC): 30fps (704*576, 640*480, 640*360)
  Third stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720, 704*576); 60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720, 704*576)

• Video Bit Rate

  H.264: 896kbps–6Mbps
  H.265: 1024Kbps ~ 6Mbps

• Day / Night

  Auto (ICR) / Color / B&W

• BLC

  Support

• HLC

  Support

• WDR

  DWDR

• Scene Self-adaptation

  Support

• White Balance

  Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

• Gain Control

  Low, Mid low, Mid, Mid high, High

• Noise Reduction

  2D / 3D NR

• Motion Detection

  Smart /Ordinary (4 areas)

• Region of Interest (ROI)

  Support (4 areas, Level 1~6)

• Defog

  N/A

• Mirror

  Support

• Image Rotation

  0° / 90° / 180° / 270° / Horizontal / Vertical

• Privacy Masking

  4 areas

• Corridor Mode

  Support

• Digital Zoom

  Support

• Anti-flicker

  N/A

• Audio

• Built-in MIC

  Support

• Audio Compression

  G.711ulaw

• Environment Noise Filtering

  Support

• Audio Sampling Rate

  8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Audio Bit Rate

  64 Kbps (G.711ulaw)

• Intelligent Video Analytics

• IVA (Perimeter Protection)

  Line Crossing, Area detection, Smart Motion Detection
  (human and vehicle targets classification)

• Intelligent Video

  Support fast retrieval by human & vehicle targets classification, playback and backup

• Face Detection

• Intelligent Search

  Support fast retrieval by human & vehicle targets classification

• Face Templates

  N/A

• Face Quality Filtering

  N/A

• Face Detected Per Frame

  N/A

• Detection Area

  N/A

• Detected Face Size

  N/A

• Capture Response

  N/A

• Alarm

• Basic Alarm Event

  SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

• Smart Alarm Event

  Line Crossing, Area detection, Smart Motion Detection
  (human and vehicle targets classification)

• Alarm Linkage Actions

  Upload to memory card/FTP,Notify surveillance center, trigger recording, trigger capture, send email

• Network

• Simultaneous Live View

  Up to 15 channels

• Network

  1 RJ45 10 M/100 M self-adaptive Ethernet port

• SDK and API

  Support SDK, API and ONVIF

• Cyber Security

  Video encryption; firmware encryption; conguration encryption; account lockout; security
  logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP/HTTPS; TLS; IP address filter; Security Audit Log

• Protocol

  TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket

• Interoperability

  ONVIF Profile S/T/G

• User / Host

  Up to 256 users can be added. 3 user levels: admin, operator and guest

• Network Storage

  FTP, Micro SD card, auto network replenishment (ANR)

• Web Browser

  IE / Edge /Firefox / Chrome / Safari

• Management Software

  AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess

• Mobile Application

  AntarView Pro+ (iOS & Android)

• On-Board Storage

  Micro-SD Card Slot (support max. 256GB)

• Operation System

  Windows

• P2P Cloud Service

  Support

• Port

• Audio Input

  N/A

• Audio Output

  N/A

• Alarm Input

  N/A

• Alarm Output

  N/A

• INTERFACE

• Reset Button

  Support

• ANR

  Support

• USB

  N/A

• RS485

  N/A

• Power

• Power Consumption

  Basic ≦ 3W (12 VDC); 4.5 W (PoE)

• Power Supply

  PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection

• Power Interface

  Ø 5.5 mm coaxial power plug

• Structure

• Casing Material

  Aluminium Alloy

• Dimensions

  180.80 * 75.30 * 66.20 (mm)

• Net Weight

  0.40 kg

• Gross Weight

  0.52 kg

• Environment

• Operating Conditions

  –30 °C to +60 °C (–22 °F to +140 °F)/ Humidity 95% or less (non-condensing)

• Storage Conditions

  –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing)

• Protection Grade

  IP67

• Certifications

• Certicates

  ISO9001, ISO14001, CE, FCC
