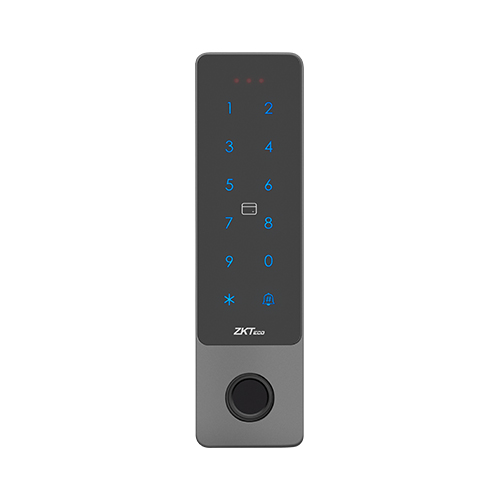

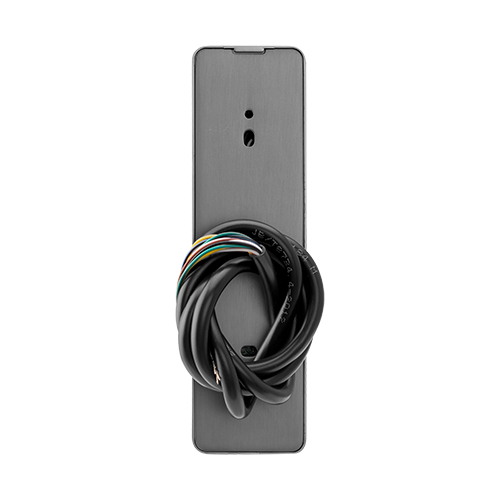

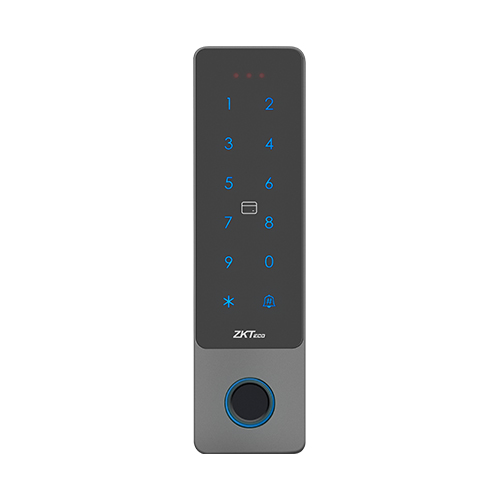

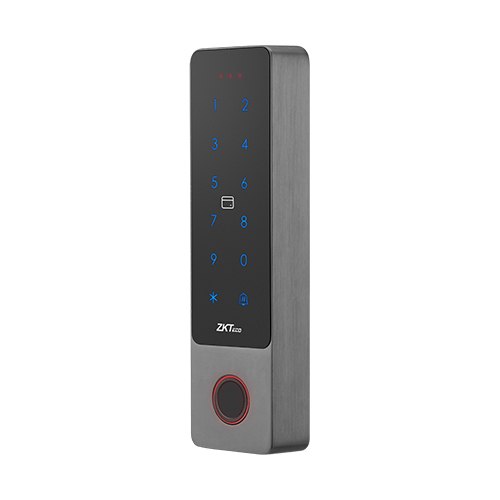

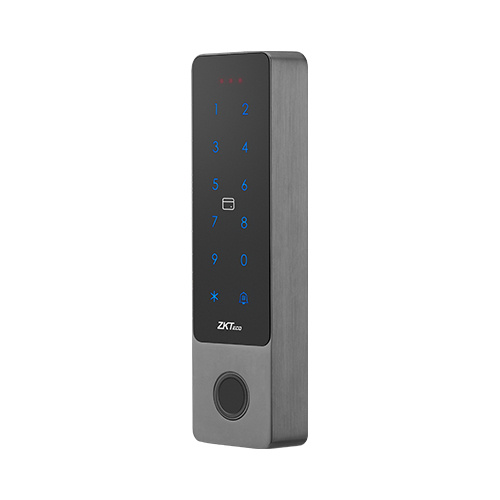

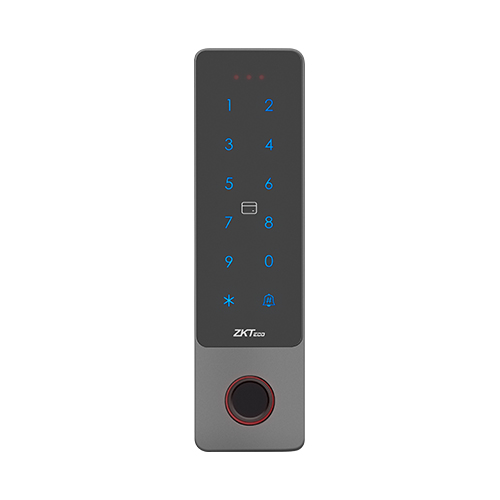

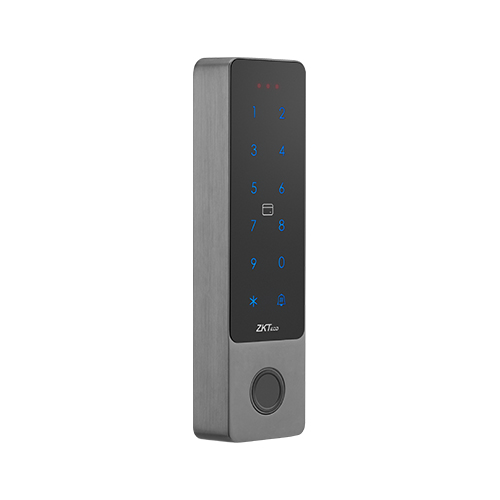

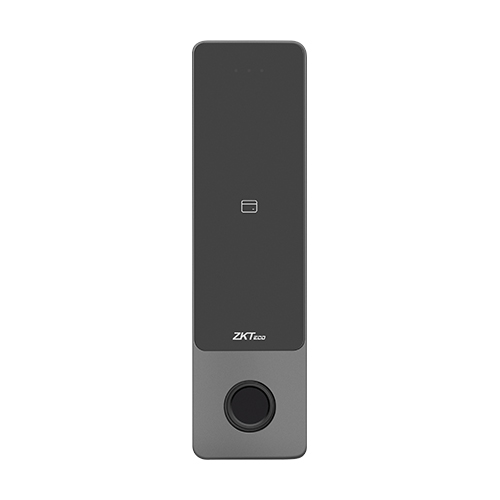

X10 is a standalone access control device made of zinc alloy with an IP66 protection rating, ensuring the device operates round-the-clock in all weather conditions.
X10 offers verification methods including RFID cards, PIN codes and fingerprint authentication. It supports dual-frequency card modules 125kHz and 13.56MHz at the same time, granting more flexibility for access control function.
Moreover, X10 is a powerful access control device that offers a variety of features, including remote control via Wi-Fi and Bluetooth connection to the ZKBio Zlink mobile application.
When connected to the ZKBio Zlink mobile app, the X10 enables authorized users to unlock doors from anywhere, making it ideal for businesses with multiple locations or for those who need to access their facilities remotely.
The X10 also supports Wiegand reader operation and features intuitive LED and buzzer indicators for system status and access events.
Model
X10
Authentication Method
Fingerprint / Card / Password (Physical Touch Keypad )
User Capacity
500 (1:N) (Standard )
Card Capacity
500 (1:N) (Standard )
Fingerprint Template Capacity
500 (1:N) (Standard)
Transaction Capacity
N/A (Cloud sync via ZKBio Zlink)
Max. User Password Length
Support 4 to 10 Digit number (Factory Default: 4 digits)
Biometric Verification Speed
less than 0.3 sec (Fingerprint)
False Acceptance Rate (FAR) %
FAR ≤ 0.0001%
False Rejection Rate (FRR) %
FRR ≤ 0.01%
Card Type
ID & IC Card @125 kHz &13 .56 MHz (Standard)
Communication
Wi-Fi (IEEE802 .11 b/g/n) @ 2.4 GHz / Bluetooth 5.0
Wiegand (26-44bits Input)*1
Electric Lock*1, Door Sensor*1, Exit Button*1, Doorbell*1
Standard Functions
Access Control, Buzzer, Multiple Verification Methods,
LED status indicators:
Orange: Programming
Green:Verification successful
Red: Standby,Verification Fail 3 Beeps
Operation Error: 3 Beeps; No Indicator
Power Supply
DC 12V 0 .15A
Operating Temperature
-25°C to 60°C
Operating Humidity
10% to 90% RH (Non-condensing)
Dimensions
160mm*45mm*22mm (L*W*H)
Gross Weight
0.46Kg
Net Weight
0.37Kg
Supported Software
Mobile APP: ZKBio Zlink
Installation
Wall-mount
Housing Material
Zinc Alloy
Ingress Protection Rating
IP66 (waterproof and dustproof )
Certifications
ISO14001, ISO9001, CE, Equivalent to RoHS
Factory ID
AC01-FL40H-01
