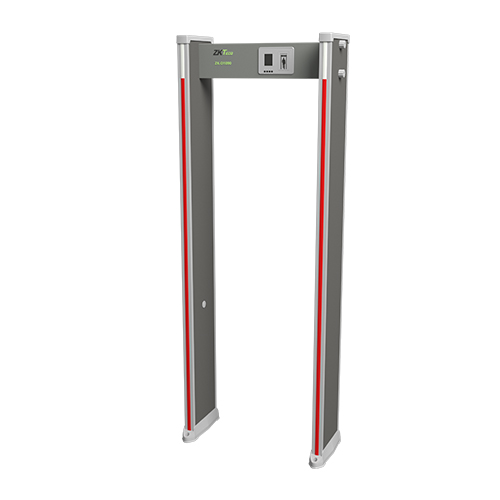

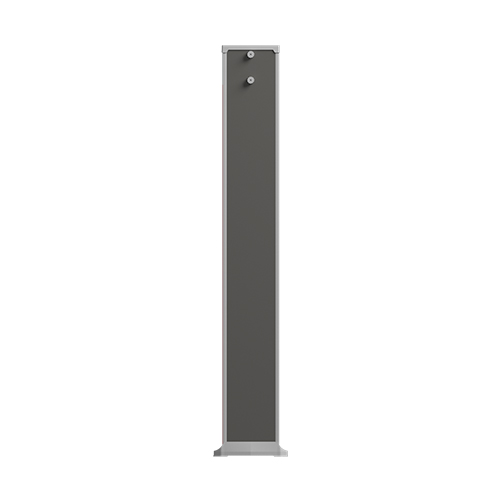

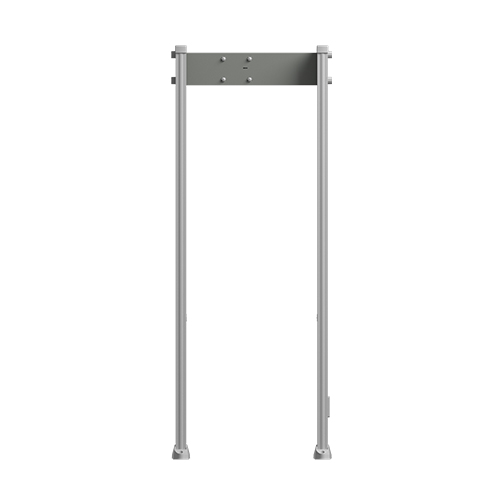

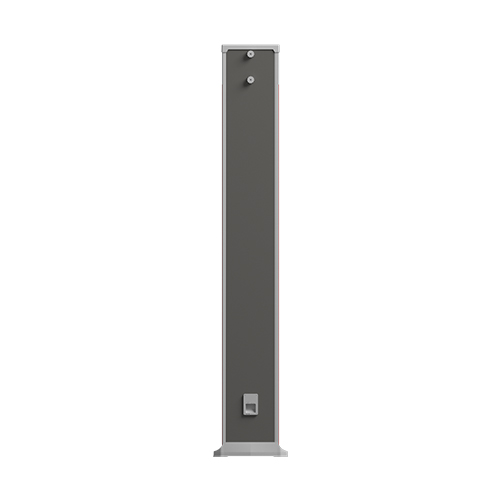

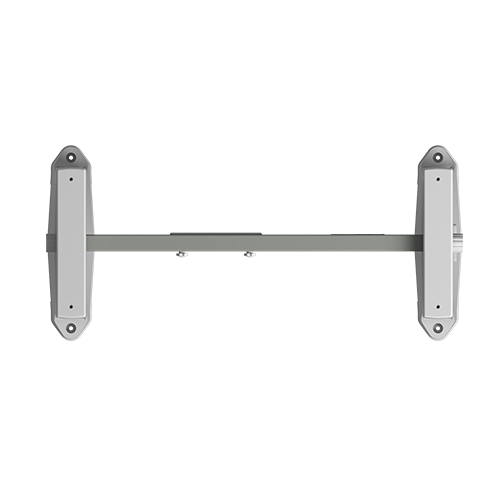

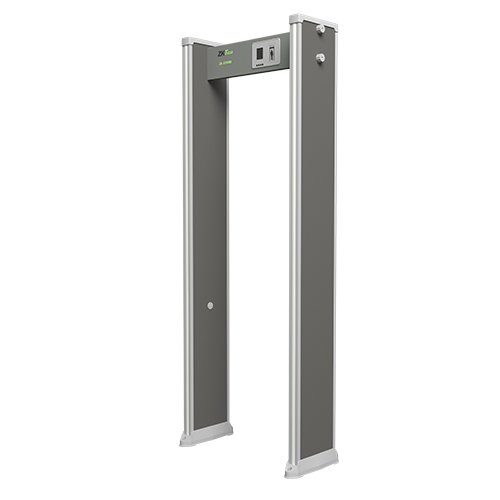

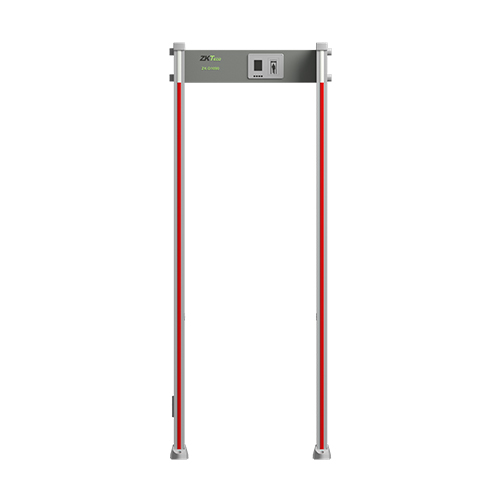

ZK-D1090

The ZK-D1090 is a budget-friendly walk through metal detector, ideal for ensuring human security in schools, public venues, and corporate entrances. With 9 detection zones and 500 adjustable sensitivity levels, it delivers reliable contraband detection, even for a coin with a diameter of 22.25mm, while maintaining safety for users. Equipped with a 2.8-inch color screen for easy operation, the ZK-D1090 provides clear alerts through synchronized LED and audio signals. It also tracks pedestrian counts and alarm occurrences for efficient monitoring. The detector features anti-interference technology and a high throughput design, making it perfect for high-traffic areas.

Parameters

Model Name

ZK-D1090
Display

2.8'' TFT Color Screen (240 X 320)
Physical Keypad

4 keys
Overhead Control Unit

Channel, Time, People Count,Alarm Count
Detection Mode

Automatic Detection Mode / Infrared Detection Mode (default)
Maximum Detection Distance

20mm to 2000mm (vertical)
Throughput

> 40 persons per minute
Sensitivity Level

500 levels
Detection Zone

3 vertical/ 3x2 grid /3x3 grid (adjustable)
Channel

100
Smallest Metal Objects Detected

Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power Supply

AC100V to 240V (DC12V/3A)
Input Voltage

DC12V
Operating Current

0.8A
Operating Power

10W
Operating Time (Estimated)

24 / 7 operation capability (continuous operation)
Detection Sound Alert

6 types of alarm tones (adjustable), 0-6 levels of volume (max 80 dB)
Detection Visual Indicator

2 sets of LEDs (red) evenly distributed on left and right door panels
Self-diagnosis Program

Support
Number of IR Groups

1
Detected Contrabands

Ferrous and non-ferrous metal weapons
Enclosure Material

Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
Operating Frequency

5.7 kHz to 9.6 kHz
Operating Temperature

-10°C ~ 45°C
Storage Temperature

-20°C ~ 55°C
Operating Humidity

< 95% RH (non-condensing)
Ingress Protection

N/A (waterproof and dustproof), N / A (vandal resistant)
Application Environment

Indoor
Dimensions (L*W*H)

2221 * 859 * 405mm
Lane Size (L*W*H)

2007 * 710 * 315mm
Dimensions with Packaging (L*W*H)

2280 * 457 * 280mm
Weight

Gross Weight: 35kg
Net Weight: 27kg
Interface

Relay Output: NO
Network Interface: NO
Remote Control

NO
Certifications

CE, FCC, ISO9001
