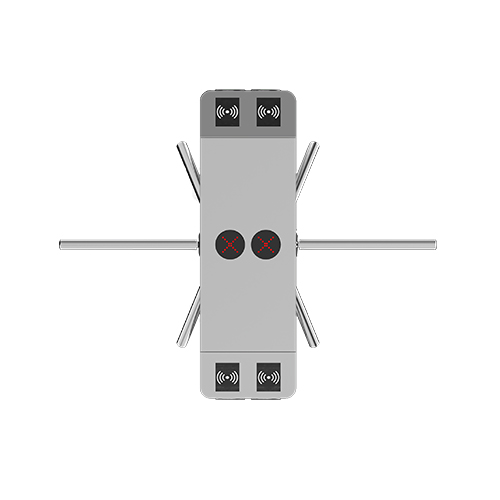

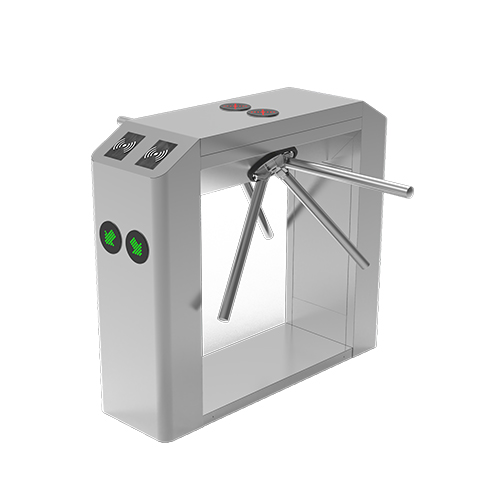

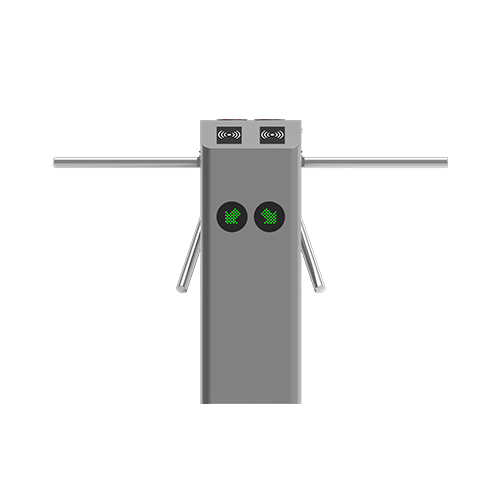

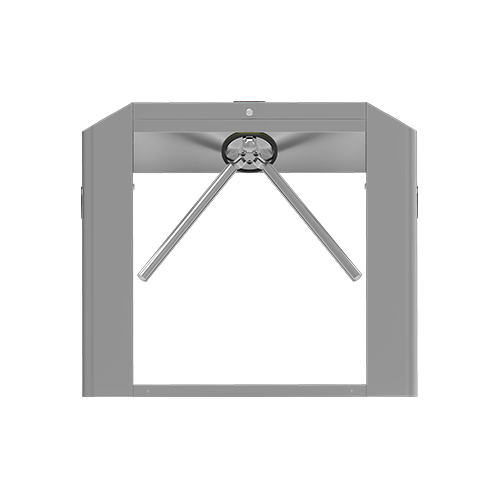

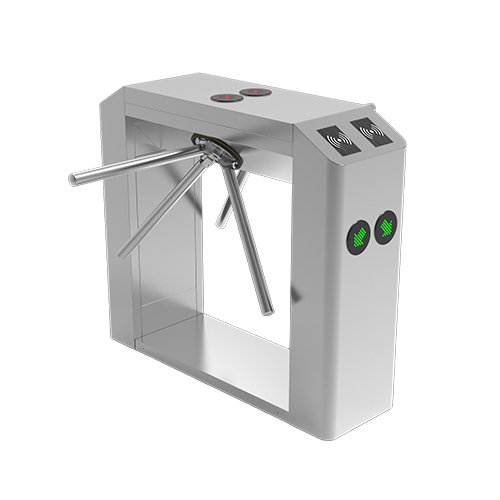

The TS2200 Pro series combines robust SUS304 stainless steel construction with intelligent access control, delivering a reliable security solution for high-traffic environments.
This dual-lane bi-directional tripod turnstile supports 25 passengers per minute. Integrated LED indicators and audio buzzers provide clear passage guidance, making it ideal for corporate offices, transit hubs, gyms, and entertainment venues. Constructed entirely from SUS304 stainless steel and conducted a self-lab test which is equivalent to IPX4-level water resistance, the TS2200 Pro withstands demanding indoor and sheltered outdoor environments.
Safety features include auto-locking tripods upon authentication failure and automatic barrier drop during power outages or fire alarms, ensuring unobstructed emergency evacuation. With anti-tailgating detection, a proven 2-million-cycle MCBF rating, and medium-security classification, this pre-assembled turnstile delivers dependable performance and seamless integration with existing building management systems.
Model Name
TS2000 Pro Series
Visual Indicator
LED Indicator
Steady green = Open
Steady red = Close
Audio Indicator
Internal buzzer
Barrier Movement Type
Rotating (tripod)
Footprint (mm*mm)
1120 x 350
Tripod Length
500mm
Lid Material
SUS304 stainless steel
Lid Options
Streamlined (Pole mount options)
Authentication Method
N/A (standard);
Fingerprint authentication, RFID verification (optional)
Chassis Material
SUS304 stainless steel (T=1.2mm)
Chassis Color
Silver / gray
Barrier Material
SUS304 stainless steel
Motherboard Function
Motherboard Function
Motherboard Communication
Fire alarm port (relay) *1 ; RS485 port *1
Controller
N/A
Optional model upon request: TS2211 Pro/TS2222 Pro
(controller: C3-200 Plus (recommended); InBio 260 Pro Plus or third-party controller subject to turnstile chassis space)
Credential Options
N/A
Optional model upon request: TS2211 Pro (RFID only) ; TS2222 Pro (RFID + Fingerprint)
Under Mount RFID Reader (ProID Series, KR Series)
Under Mount Fingerprint Reader: FR1200 / FR1500
Flow Rate
RFID: 25 passengers per minute; Fingerprint: 20 passengers per minute
Accessibility
Adult; Children (with care); Disability (with care)
Power Supply
110V / 220V AC ±10% 50/60Hz; DC 12V
Power Rating
10VA (Standby); 40VA (Operation)
Fire Signal
Input for voltage free contact
Noise Level
Less than 60dB
MTTR
Less than 60 minutes
MCBF
2 million
Weight
Gross weight: 75kg
Net weight: 65kg
Dimensions ( L*W*H )
1120×350×986mmm
Dimensions with Packing ( L*W*H )
1215×430×1104mm
Operating Temperature
-20°C to 70°C
Operating Humidity
0% to 80% RH (non-condensing)
Certifications
CE, FCC
Ingress Protection Rating
Tested to IPX4-level water resistance (self-tested result)
Supported Software
ZKBio CVAccess / ZKBio CVSecurity (expands functionality for access control)
Safety Levels
Auto-locking tripod upon authenticaton failure; drop arm during power o or power outage
Security Features
Anti-tailgating
Product Delivery
Pre-assembled
Application Environment
Indoor / outdoor (if sheltered)
Site Preparation
Flat level finish floor (base plate in options for unfinished floor)
Security Level
Medium
Emergency Mode
Support (drop arm)
Packing Material
Wooden box (standard)
Lane Type
Dual lane (support bi-directional)
