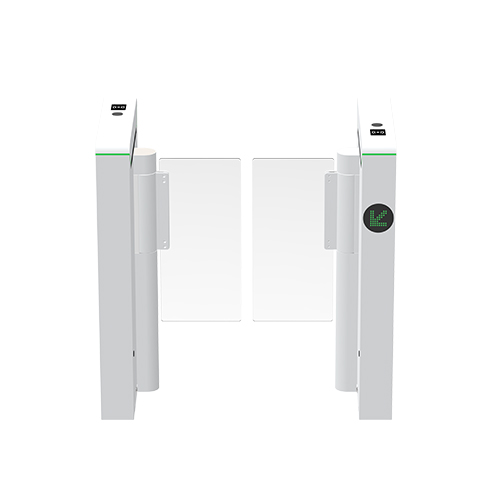

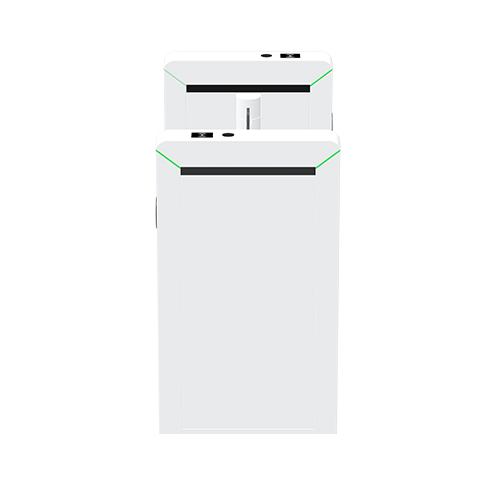

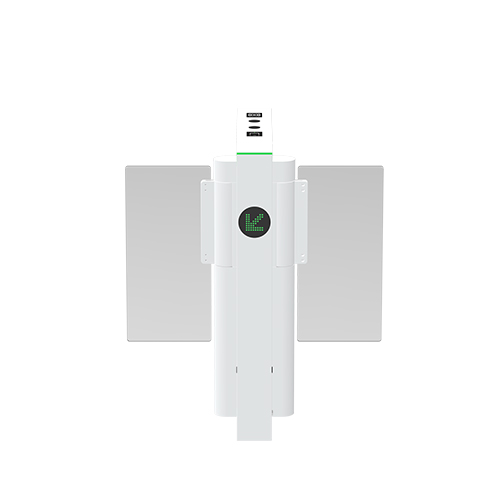

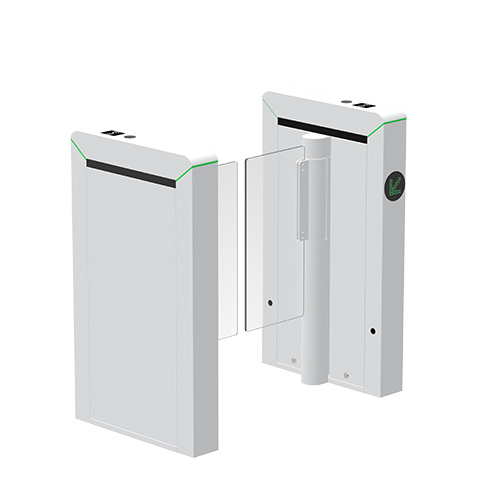

Mars-S100 swing barrier turnstile series from ZKTeco is constructed from durable cold-rolled steel SPCC (GB700) with a powder coating, offering a contemporary design. The turnstile provides single lane or dual lane, and the lane which can be extended up to 900mm for for very high-traffic areas such as bus terminals, government institutions and stadiums.
Mars-S100 Series has installed four pairs of IR sensors for accurate people counting and to avoid collisions with the barrier. The barriers can be locked in a closed position, and an integrated clutch mechanism engages if the barrier is forced, protecting the turnstile from damage.
Additionally, this compact speed gate can integrate with access control system. Upon a valid verification of user's credentials (Fingerprint / Face / Palm / RFID Card / QR code), the barriers automatically swing to the open position, allowing passage. Essential safety functions include automatic barrier opening in the event of power loss or a fire alarm signal activation, ensuring unimpeded egress in emergencies.
Model Name
Mars-S100
Mars-S120
Visual Indicator
Steady Green = Normal Use
Steady Red= Door Closed
Audio Indicator
Internal buzzer
Lane Type
Mars-S100: Single lane
Mars-S120: Dual Lane(Consists of 2 single-core swing barrier turnstile and 1dual-core swing barrier turnstile)
Lane Width
660mm (optional: 900mm)
Barrier Movement Type
Swing
Motor
DC brushless motor
Movement Speed
0.8s per movement (open/close timing)
Movement Accuracy
± 2 Degrees
Clutch
Mechanical clutch for anti-panic/anti-collision
Lid Material
Cold-rolled steel SPCC (GB700)(optional: SUS304 stainless steel)
Lid Options Authentication Methods
Streamlined under mount options: Fingerprint / RFID / Palm Recognition / QR Code
Surface mount options: Facial Recognition
Chassis Material
Cold-rolled steel SPCC (GB700) (optional: SUS304 stainless steel)(T=1.2mm)
Chassis Color
White (standard)/silver-gray (optional)
Barrier Material
Acrylic, 295x630mm (standard) / Acrylic, 425x630mm (optional)
IR Sensors
4 Pairs (standard) (high&low position)
Motherboard Function
System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration, etc.
Motherboard Communication
Fire alarm port (relay)*1, RS485 port *1
Controller
C3-200 & InBio260 Pro (recommended)
other depends on dimensions fitting in (optional)
Credential Options
Under mount RFlD reader: (support model: ProlD Series, KR Series)
Under mount ngerprint reader: FR1200/FR1500
Facial Recognition: Proface X, G4 Pro
Palm: Omni AC30
Flow Rate
Mars-S100: QR Code / RFlD: 30 passengers per minute; Fingerprint / Palm: 20 passengers per minute; Face: 15 passengers per minute
Mars-S120: QR Code / RFlD: 30 passengers per minute; Fingerprint / Palm: 20 passengers per minute; Face: 15 passengers per minute
Barrier Width
660mm (standard for single pedestrian access)
900mm (optional for trolley or pedestrian with luggage access)
Power Supply
110V / 220V AC@50 to 60 Hz, DC 24V
Power Rating
22VA (Standby)
50VA (Operation)
Fire Signal
Input for voltage free contact
MTTR
Less than 60 minutes
Noise Level
Less than 60dB
MCBF
5 million
Gross Weight
Mars-S100: 32kg (±5kg) (2boxes)
Mars-S120: 40kg (±5kg) (1boxes)
Net Weight
Mars-S100: 25kg (±5kg) (2boxes)
Mars-S120: 30kg (±5kg) (1boxes)
Dimension (L*W*H)
600 * 120 * 1040 mm
Operating Temperature
-20°C to 70°C
Operating Humidity
0% to 85% RH (Non-condensing)
Certifications
CE, FCC, ISO9001
Supported Software
ZKBio CVAccess/ZKBio CVSecurity
(depends on equipped access controller)
Safety Features
Voltage free contact input for fire alarm fail state
automatic barrier open during power off
Security Features
Infrared Anti-Clamping, Mechanical Anti-Clamping, Power-Off Fail-Safe, Emergency Escape Function
Product Delivery
Pre-assembled
Application Environment
Indoor
Site Preparation
Flat&level fnished floor (base plate in options for unfinished floor)
Dimensions with Packing ( L*W*H )
Mars-S100: 762 * 362 * 1215 mm (2 boxes)
Mars-S120: 762 * 362 * 1215 mm (1 box)
Security Level
Low
Emergency Mode
Support (barrier open automatically)
Packing Material
Wooden (standard)
