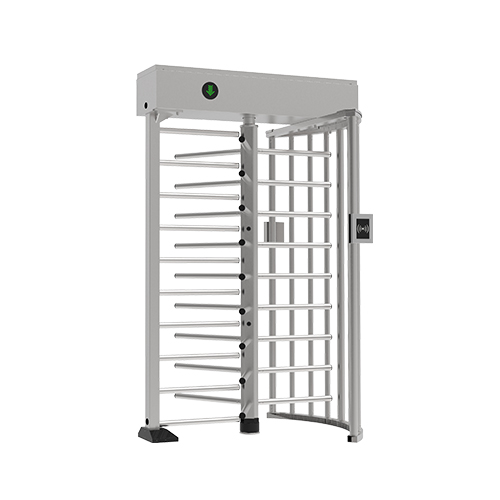

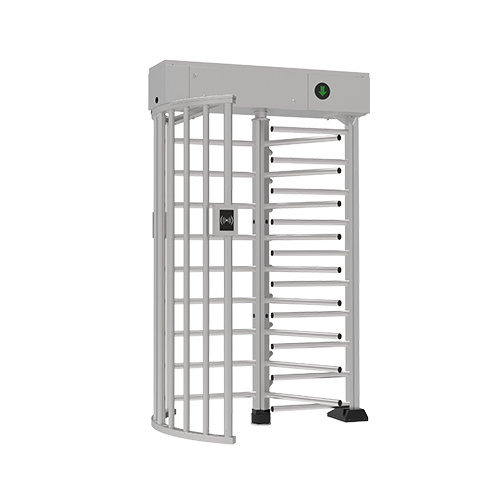

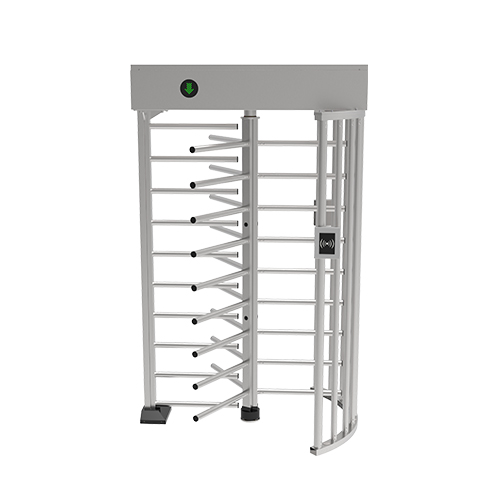

Saturn-H1300

The Saturn-H1300 Series integrates easily with fingerprint authentication, facial authentication, RFID card and QR code verification. fitting smoothly into your existing access control setup. Its bi-directional operation can be independently configured as controlled, locked, or free rotation, ensuring adaptable security for any environment. Saturn-H1300 Series is equipped with red and green LED indicators which provide clear visual guidance for users.、

Also, the Saturn-H1300 is a high-security pedestrian access gate engineered for mobility — directly overcoming the key limitation of traditional full-height turnstiles, which are fixed and difficult to relocate. Designed for temporary access control, rapid deployment, and convenient transportation, it can be quickly disassembled into compact modules and redeployed across multiple sites, making it the practical choice wherever perimeter security needs change.

Parameters

Model Name

Saturn-H1300
Audio Indicator

N/A
Visual Indicator

LED visual indicators integrated into the vertical column
Red cross: passage denied
Green arrow: passage allowed
Display

N/A
Lane Type

Single lane
Lane Width

600mm
Lane Height

2265
Footprint (L*W)

1400*1190
Rotor Movement Type

Full-height rotating turnstile
Rotor Arm Configuration

3-blade rotor
Rotor Diameter

38mm
Rotor Arms

9
Throughput Rate

Max. 20 to 25 people per minute
Clutch

N/A
Rotor Arm Material

Stainless steel
Cabinet Material

SUS304 stainless steel (the housing features a precision 240# hairline finish) / (SUS316 stainless steel optional)
Lid Material

SUS304 stainless steel (the housing features a precision 240# hairline finish) / (SUS316
stainless steel optional)
IR Sensors

N/A
Motherboard Function

System confguration, entry log memory, safety logic
Motherboard Communication

Fire alarm port (Relay)*1, RS485 port*1
Controller

Standard full height turnstile controller
Credential Options

RFID reader: ProID10; Fingerprint reader: FR1500S or 3rd-party readers
QR Code reader: QR500
Compatible with ZKTeco and third-party facial recognition standalone access control terminals
Flow Rate

RFID: 20 passengers per minute
Fingerprint: 15 passengers per minute
QR Code: 20 passengers per minute
Facial Authentication: 15 passengers per minute
Accessibility

600mm (23.62") standard lane for pedestrians
Power Supply

100-120VAC or 200-240VAC, 50/60Hz
Power Rating

40W
Noise Level

Less than 60 dB
MCBF

2million
Weight

Net Weight: 152kg
Gross Weight: 198kg
Dimension (L*W*H)

1400*1190*2265mm
Dimensions with Packing ( L*W*H )

2150*760*703mm
Operating Temperature

-28°C to 60°C
Operating Humidity

0% to 95% RH (non-condensing)
Certifications

IPX4
Supported Software

ZKBio CVSecurity (depends on the access controller installed)
Safety Features

Emergency escape function
Security Features

Anti-pass back, Anti-tailgating
Product Delivery

Pre-assembled for easy installation
Application Environment

Indoor and Covered Outdoor
Site Preparation

Flat and level finished floor (optional base plate for unfinished floors)
Security Level

High
Emergency Mode

Rotor unlocks automatically during emergencies
Packing Material

Wooden Box
Warranty

1 year
