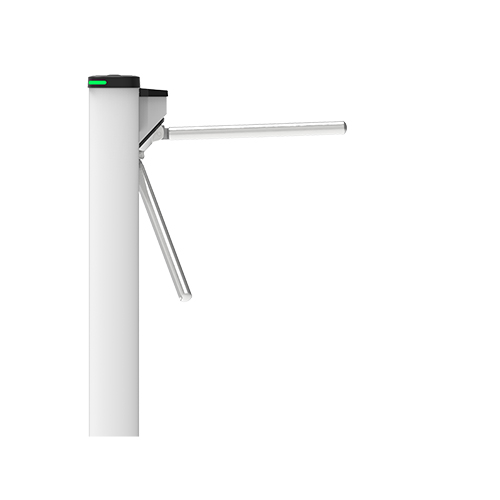

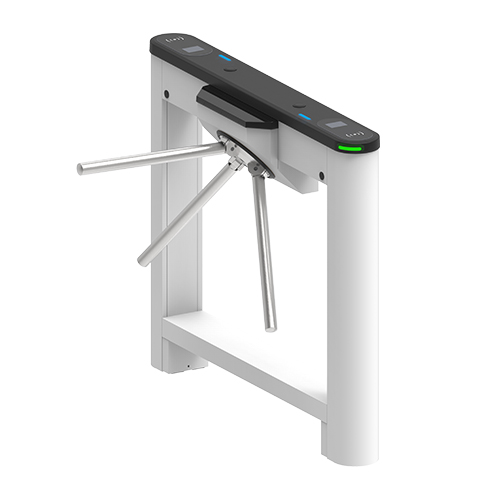

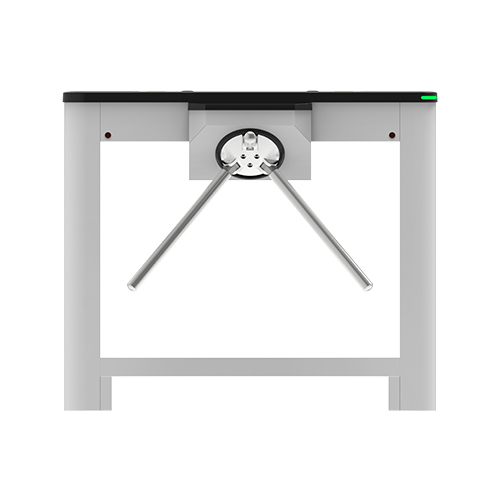

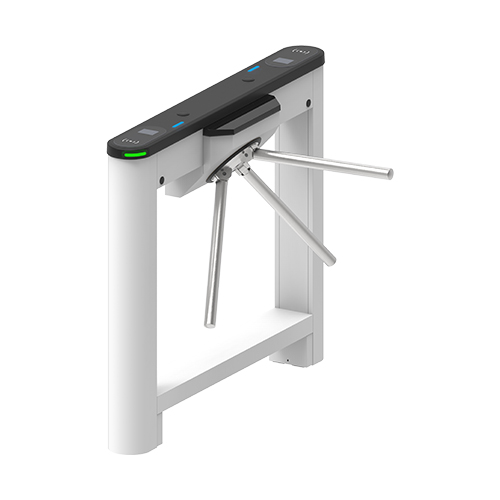

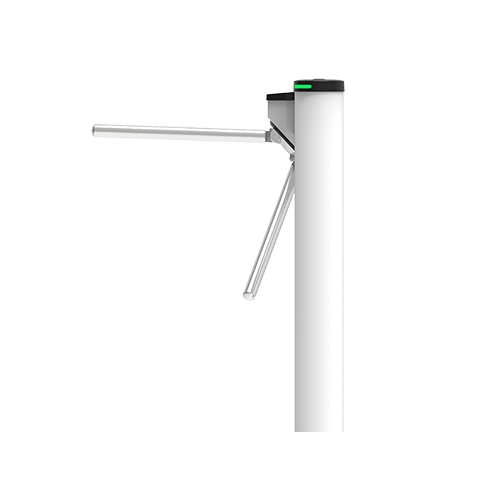

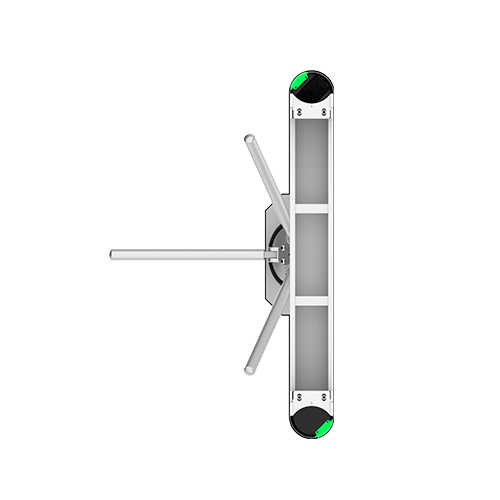

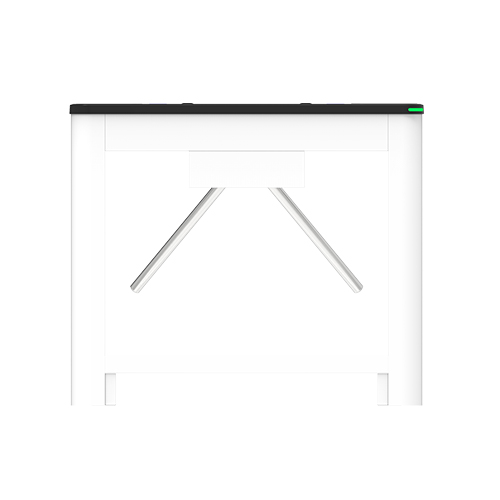

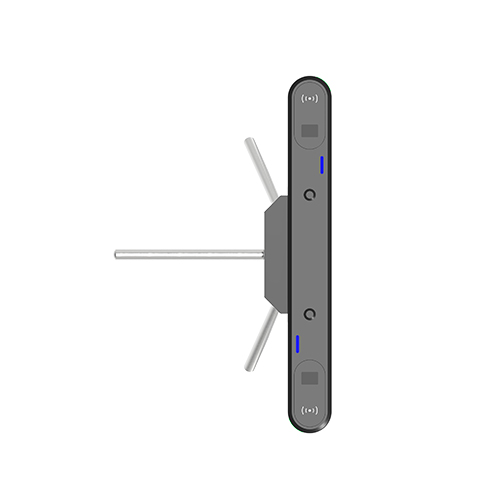

The Saturn-T1000 Pro is built for reliable entrance and exit management. Powered by a smooth brushless-motor drive, it delivers fast, frictionless bi-directional passage with gentle-touch rotation and clear LED guidance, creating a smooth flow for users while enforcing strict lane discipline and anti-tailgating control. Its housing, constructed from 1.0mm electro-galvanized steel with a baked enamel finish and an integrated molded top cover, offers a compact profile that resists rust and stands up to daily wear. With an IPX4 ingress protection rating, the Saturn-T1000 Pro performs dependably indoors, under shelter, or fully outdoors.
Supporting multiple authentication methods—including facial authentication, QR code scanning and RFID card verification. The Saturn-T1000 Pro is equipped with the standard electrical interfaces and standard internal wiring, ensuring straightforward deployment across enterprise entrances, stations, ports, exhibition centers, and public leisure facilities.
Model Name
Saturn-T1000 Pro Series
Audio Indicator
Internal buzzer
Visual Indicator
LED Indicator
Blue: Standby
Green: Access Granted
Red: Alarm / Error
Display
N/A
Lane Type
Single lane
(Support bi-directional entry / exit lane)
Lane Width
550 mm
Barrier Movement Type
Rotating
Motor
Brushless DC Motor
Movement Speed
N/A
Movement Accuracy
N/A
Clutch
N/A
Lid Material
Polycarbonate body + 2.5D Tempered Glass Panel
Lid Options Authentication Methods
Streamlined under mount options: RFID / Facial Authentication / QR code (Dynamic / Static)
Chassis Material
Electro-galvanized steel plate, with baked enamel finish. (T=1.0mm)
Chassis Color
Pearl White (PWH)
Tripod Material
SUS304 stainless steel
LiDAR Sensor (dToF technology)
None (standard) ; 2 pcs (optional)
Motherboard Function
Tripod release duration, access mode configuration
Motherboard Communication
Fire alarm port(relay)*1, RS485 port *1
Controller
Access controller options: C3, InBio series or third-party controller subject to turnstile chassis space
Credential Options
Under mount RFID reader: (support model: ProID Series, KR Series)
Under mount fingerprint reader: FR1200/FR1500S
Flow Rate
Face: 15 Passengers per minute
RFID: 25 Passengers per minute
QR code: 25 Passengers per minute
Tripod Length
500 mm
Accessibility
Options: Wireless remote control, wired remote control, QR reader
Power Supply
AC 110V~220V, 50/60Hz, DC 12V
Power Rating
Operating: 40W, Standby: 10W
Fire Signal
Input for voltage-free contact
Noise Level
< 65 dB
MTTR
Less than 60 minutes
MCBF
5 million
Weight
Gross weight (25kg)
Net weight (30kg)
Dimension (L*W*H)
1200 × 228 × 1020 mm
Operating Temperature
-28~60℃
Operating Humidity
5% to 80% RH (Non-condensing)
Certifications
CE, FCC (pending)
Ingress Protection Rating
IPX4 (self-laboratory test)
Supported Software
ZKBio CVAccess / ZKBio CVSecurity
(Compatible with software only when connected to the control panel)
Safety Features
Auto drop arm during power failure or emergency signal, allowing free passage
Security Features
Anti-tailgating
Product Delivery
Pre-assembled
Application Environment
Indoor/ Sheltered-outdoor/ Outdoor
Site Preparation
Flat and level finished oor (optional base plate for unfinished floors)
Dimensions with Packing ( L*W*H )
1300×305×1106mm (L*W*H)
Security Level
Medium
Emergency Mode
Automatic drop arm during power outage or fire alarm events
Packing Material
Carton(standard), wooden(optional)
Warranty
1 years
