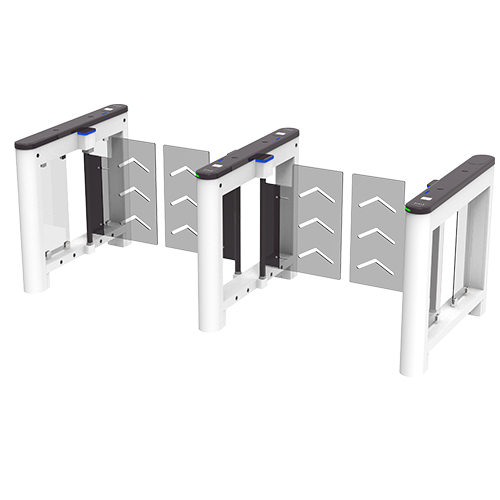

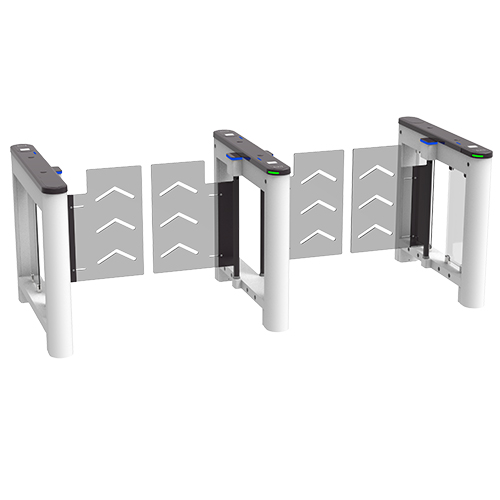

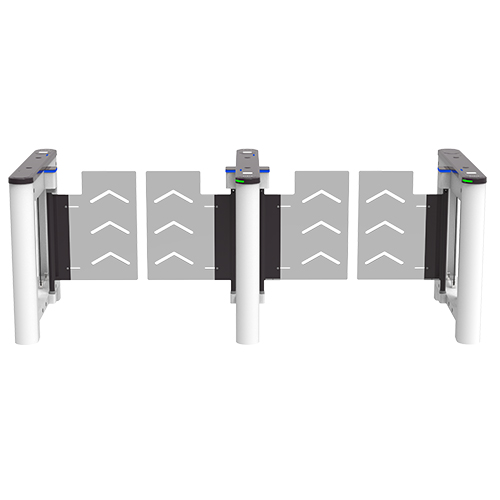

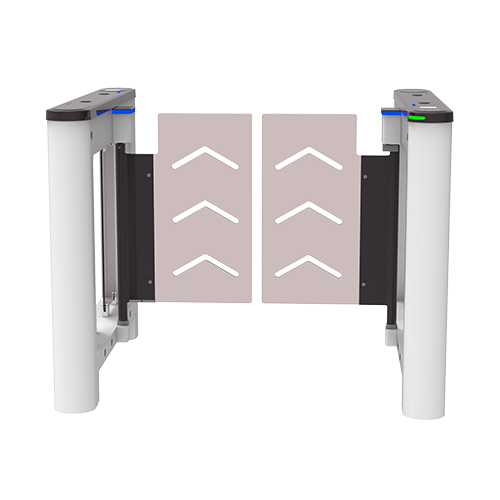

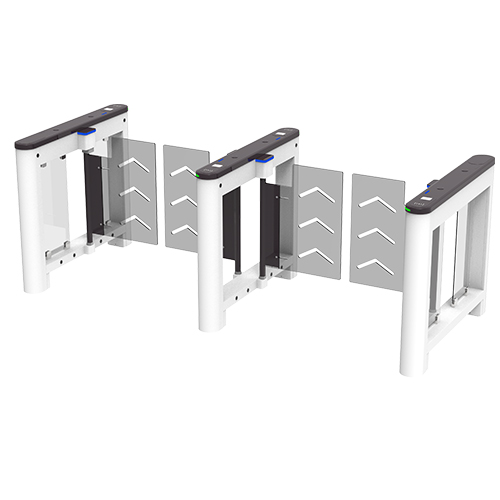

Saturn-S1000 Pro Series

The Saturn-S1000 Pro Series intelligent swing barrier by ZKTeco is engineered for efficient and secure pedestrian access management. Integrating mechanical structure, electronics, microprocessor control, and multiple authentication technologies into one unified system, it seamlessly coordinates authentication, directional indication, and real-time alarm systems - all driven by a high-performance DC brushless motor.

The overall design is elegant, durable, rust-resistant, and built for long-term operation. Standard electrical interfaces allow easy integration with multiple verification methods, including facial authentication, RFID, and QR code verification, providing users with a secure, orderly, and efficient passage experience while effectively preventing unauthorized access. In a fire emergency or upon power failure, the barrier automatically releases and holds the lane unobstructed, supporting fast and safe evacuation.

Parameters

Model Name

Saturn-S1000 Pro
Saturn-S1200 Pro
Audio Indicator

Internal speaker
Visual Indicator

Top LED indicator:
Blue = Door closed / stand by
Green = Door opening
Red = Door closing / alarm

Swing Barrier LED Indicator
Green = Lane available
Red = Lane unavailable
Display

N/A
Lane Type

Saturn-S1000 Pro: Single Lane
Saturn-S1200 Pro: Dual wings (with Saturn-S1200 Pro)
Lane Width

650mm ( Standard ; acrylic barrier )
1000mm ( Optional ; acrylic barrier )
1200mm ( Optional ; SUS304 barrier)
Barrier Movement Type

Swing
Motor

DC brushless motor
Movement Speed

Average 1s per movement (Adjustable open/close timing)
Movement Accuracy

N/A
Clutch

N/A
Lid Material

Polycarbonate+2.5D tempered glass
Lid Options Authentication Methods

Streamlined under mount options: QR Code / RFID
Surface mount option: Facial Authentication
Chassis Material

Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid)
Chassis Colour

Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW)
Barrier Material

Clear acrylic (H*W, 635*300mm)(standard) / Tempered glass (H*W, 635*425mm)(optional)
(For extended lane width of 1200mm requires SUS304 barrier)
IR Sensors

6 pairs (standard) ; 8 pairs (optional)
Motherboard Function

System configuration, access control
Motherboard Communication

Fire alarm Port(Relay)*1, RS485 Port*1
Controller

Not equipped.
Compatible with C3 series controller/ InBio series controller (optional)
Credential Options

Under mount RFID reader: Pro ID Series, KR Series
Under mount QR code reader: QR500
Surface mount facial authentication reader: ProFace X / SpeedFace V5L
Flow Rate

Facial Authentication: 15 passengers per minute
QR Code: 30 passengers per minute
RFID: 35 passengers per minute
Accessibility

Adult, Children (with care), Disability (with care)
Power Supply

110V / 220V AC @ 50 ~ 60Hz
Power Rating

10VA(Standby)
40VA(Operation)
Fire Signal

Input for voltage free contact
Noise Level

Less than 50 dB
MTTR

Less than 60minutes
MCBF

5 million
Net Weight

Saturn-S1000 Pro: 50kg
Saturn-S1200 Pro: 30kg
Dimension (L*W*H)

1200*150*1020mm
Dimensions with Packing ( L*W*H )

Saturn-S1000 Pro: Carton (standard): 1265*220*1070 mm (2 boxes); Wooden box (optional): 1300*480*1224mm(2 box)
Saturn-S1200 Pro: Carton (standard): 1265*220*1070mm (1 box); Wooden box (optional): 1300*260*1224mm (1 box)
Operating Temperature

-30 °C to 70 °C
Operating Humidity

5% to 90% RH (Non-condensing)
Certifications

CE, FCC (pending)
Ingress Protection Rating

IPX4
Supported Software

ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller)
Safety Features

Power off unlock device/ Fire alarm active door release
Security Features

Anti-tailgating, anti-pinch
Product Delivery

Pre-assembled for easy installation
Application Environment

Indoor / outdoor (if sheltered)
Site Preparation

Flat and level finished floor (optional base plate for unfinished floors)
Security Level

Middle
Emergency Mode

Swing barrier unlocks automatically
Packing Material

Wooden Box
Warranty

1 year
