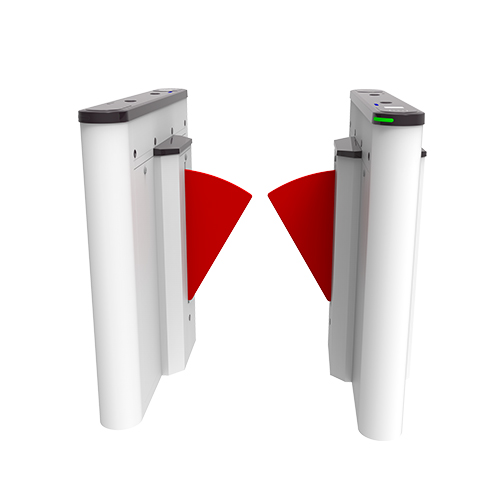

ZKTeco's Saturn-F1000 series flap barrier is a high-efficiency and designed for efficient access control for both indoor and outdoor scenarios.
Constructed with a robust cold-rolled SPCC steel chassis and a retractable polycarbonate (PC) fap barrier, the Saturn-F1000 ensures durability and safety while maintaining a modemn appearance. Equipped with a DC brushless motor, the Saturn-f1000 delivers rapid operation, opening or closing in less than one second per movement. The system integrates advanced features such as anti-pinch and anti-tailgating detection, as well as multiple authentication options-including RFlD, OR code, and facial recognition-catering to diverse security requirements. Also, the Saturn-F1000 supports a flow rate of up to 30 passengers per minute (RFlD / OR code) and 15 passengers per minute (facial recoanition), making it ideal for high-traffic applications.
Model Name
Saturn-F1000
Saturn-F1200
Audio Indicator
Speaker
Visual Indicator
LED Indicators
Steady blue = Standby, Steady green = Normal use
Steady red = Barrier close
Display
N/A
Lane Type

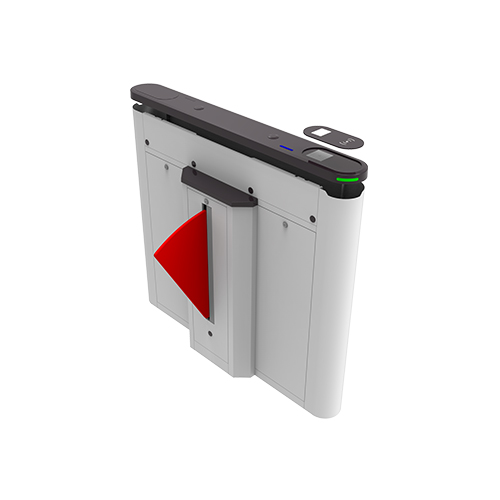

Saturn-F1000: Single Lane

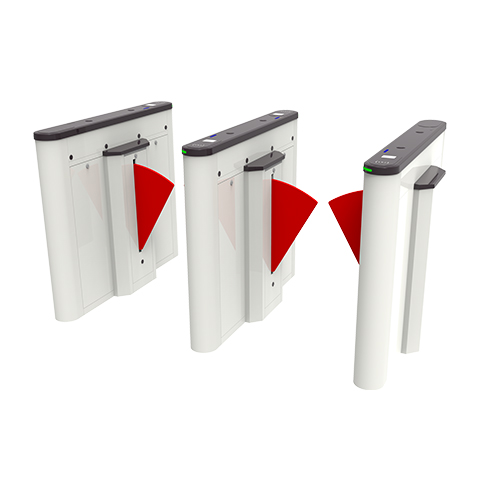

Saturn-F1200: Dual flap barriers for additional lane (with Saturn-F1000)
Lane Width
550 mm
Lane Height
1020 mm
Barrier Movement Type
Retractable flap barrier (Polycarbonate)

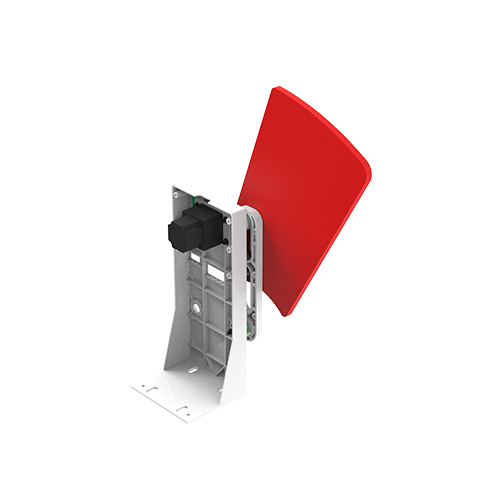

Motor
DC brushless motor
Movement Speed
Less than 1s per movement (open / close timing)
Movement Accuracy
N/A
Clutch
N/A
Cabinet Lid Material
Cold-rolled SPCC Steel (GB700)
Lid Material
Polycarbonate+2.5D tempered glass
IR Sensors
5 pairs
Motherboard Function
System configuration, access mode conguration, anti-pinch configuration, anti-tailgate configuration etc.
Motherboard Communication
Fire alarm Port(Relay)*1, RS485 Port*1
Lid Options Authentication Methods
Streamlined under mount options: RFID / QR Code
Top mount options with mounting pole: Facial Recognition
(compatible with ProFace X / SpeedFace V5L / Elite Pass)
Chassis Material
Cold-rolled SPCC Steel (GB700
Chassis Colour
White
Controller
C3, InBio series or or third-party devices
Credential Options
Under mount RFID reader: (support model: ProID Series)
Under mount QR Code Reader: QR500
Top mount facial recogntion terminal:
ProFaceX/ Elite Pass/ SpeedFace V5L
Flow Rate
RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Facial Recognition: 15 passengers per minute
Accessibility
Standard lane (550mm): Adult and children
Power Supply
110V / 220VAC @ 50-60 Hz
Power Rating
10VA (Standby), 40VA (Operation)
Fire Signal
Input for voltage free contact
Noise Level
Less than 60dB
MTTR
Less than 60minutes
MCBF
5 million
Weight
Saturn-F1000: Gross weight (60kg); Net weight (50kg)
Saturn-F1200: Gross weight (35kg); Net weight (30kg)

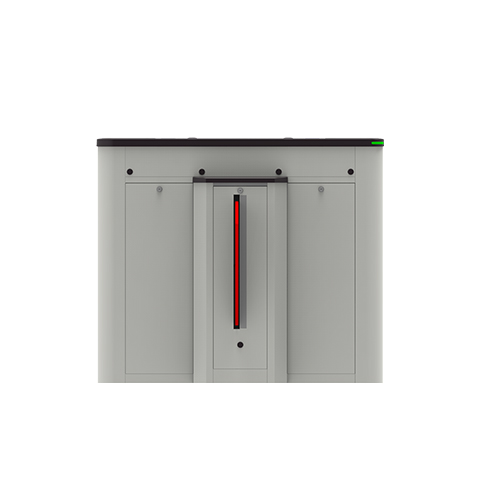

Dimensions ( L*W*H )
1200 * 306 * 1020mm
Dimensions with Packing ( L*W*H )
1345 * 360 * 1100mm
Operating Temperature
-20°C to 70°C
Operating Humidity
20% to 85% RH (non-condensing)
Certifications
CE, FCC
Ingress Protection Rating
IPX4
Supported Software
ZKBio CVAccess / ZKBio CVSecurity
(Depends on equipped access controller)
Safety Features
IR sensor safety detection
Logic voltage 24V DC
Voltage free contact input for fire alarm fail state
Auto opening on power off
Security Features
Anti-intrusion, anti-tailgating, wrong way enter alarm, automatically close door when no one pass
Product Delivery
Pre-assembled
Application Environment
Indoor/ Outdoor
Site Preparation
Flat & level finished floor (base plate in options for unfinished floor)
Security Level
Middle
Emergency Mode
Support (door unlock automatically)
Packing Material
Carton box
