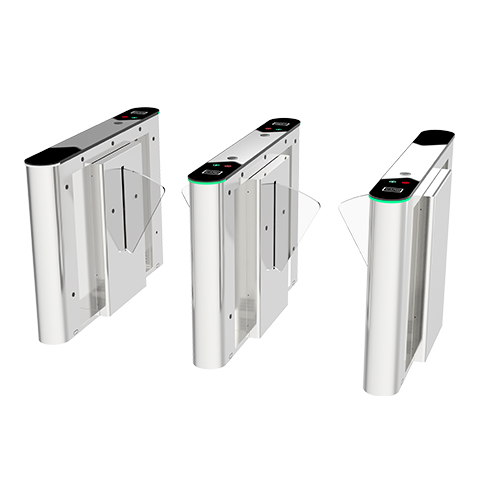

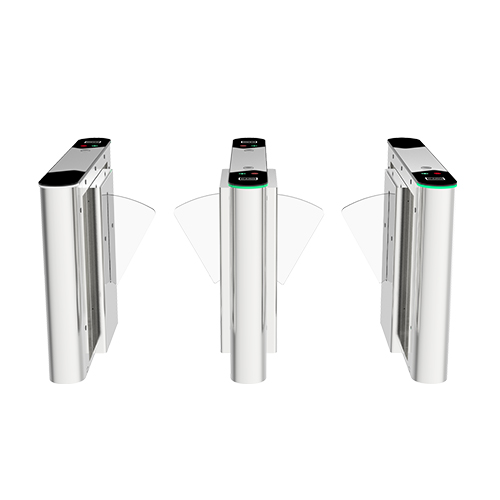

FBL6000 Pro & FBL6200 Pro

The FBL6000 Pro Series flap barier is designed for high-traffic environments, it features a rapid and responsive flap bariers that achieves a throughput rate of 30 people per minute, effectively alleviating congestion.

Constructed with SUS304 stainless steel and IPX4 protection rating, ensuring the

FBL6000 Pro for waterproof and corrosion resistance. Also, the FBL6000 Pro Series is equipped with multiple infrared sensors, anti-pinch technology, and an unauthorized access alarm system, it ensures pedestrian safety at all times. Whether in corporate offces, transit stations, or public facilities, the system quarantees a safe and reliable experience.

Parameters

Model Name

FBL6000 Pro
FBL6200 Pro
Audio Indicator

Speaker
Visual Indicator

LED pictograms
Steady green arrow = normal use
Steady red cross = door closing
Display

N/A
Lane Type

FBL6000 Pro: Single lane
FBL6200 Pro: Dual flap barriers for additional lane
Lane Width

600 mm
Lane Height

994 mm
Barrier Movement Type

Retractable Flap barrier
(Acrylic / Optional: Tempered Glass)
Motor

DC brushless motor
Movement Speed

0.6s to 1s
Movement Accuracy

1.5 Degree per movement
Clutch

N/A
Cabinet Material

SUS304 Stainless steel
Lid Material

SUS304 Stainless steel
IR Sensors

Equipped with 5 pairs (standard). Support up to 9 pairs (optional).
Motherboard Function

System configuration, access mode configuration, anti-tailgate configuration.
Motherboard Communication

Fire alarm port (Relay)*1, RS485 port*1
Controller

C3 series controller/ InBio series controller (optional).
3rd-party controller subject to turnstile chassis space.
Credential Options

RFID reader: ProID10;
Fingerprint reader: FR1500S or 3-rd party readers;
QR Code reader (Static / Dynamic): QR500;
Facial authentication terminal (Post mount): G4 Pro
Flow Rate

Facial Recognition: 30 passengers per minute;
RFID: 20 passengers per minute;
Fingerprint: 15 passengers per minute ;
QR Code: 30 passengers per minute
Accessibility

Standard lane (600mm) : adult
Power Supply

AC110-220, 50/60 Hz
Power Rating

40W
Fire Signal

Input for voltage-free contact
Noise Level

Less than 60 dB
MCBF

>5 million
Net Weight

FBL6000 Pro: 100 kg
FBL6200 Pro: 70 kg
Gross Weight

FBL6000 Pro: 150 kg
FBL6200 Pro: 90 kg
Dimensions ( L*W*H )

FBL6000 Pro: 1414 * 300 * 994 mm
FBL6200 Pro: 1414 * 300 * 994 mm
Dimensions with Packing ( L*W*H )

FBL6000 Pro: 1510 * 780 * 1230 mm
FBL6200 Pro: 1510 * 400 * 1230 mm
Operating Temperature

-20°C to 70°C
Operating Humidity

0% to 95% RH (non-condensing)
Certifications

CE, FCC
Ingress Protection

IPX4
Supported Software

ZKBio CVAccess / ZKBio CVSecurity
(Depends on equipped access controller)
Safety Features

Power off unlock device / Fire alarm active door release
Security Features

Anti-intrusion, wrong way enter alarm
Automatically close / lock door no one pass
Product Delivery

Pre-assembled for easy installation
Application Environment

Indoor and Outdoor
Site Preparation

Flat and level finished floor (optional base plate for unfinished floors)
Security Level

Middle
Emergency Mode

Flap barrier unlocks automatically during emergencies
Packing Material

Wooden Box
