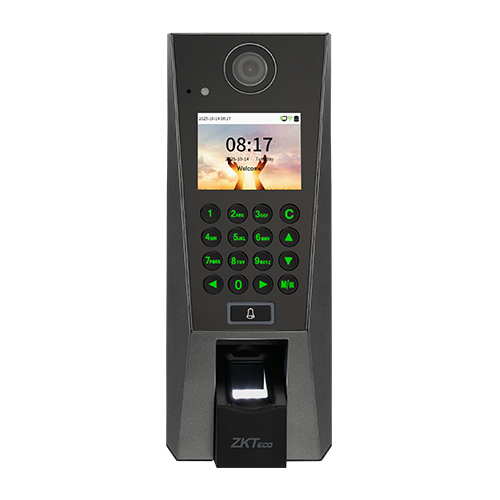

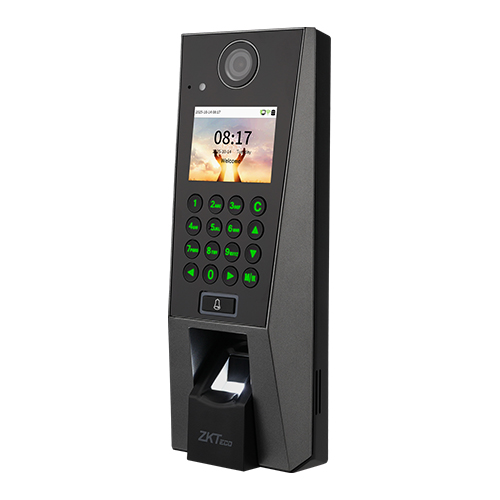

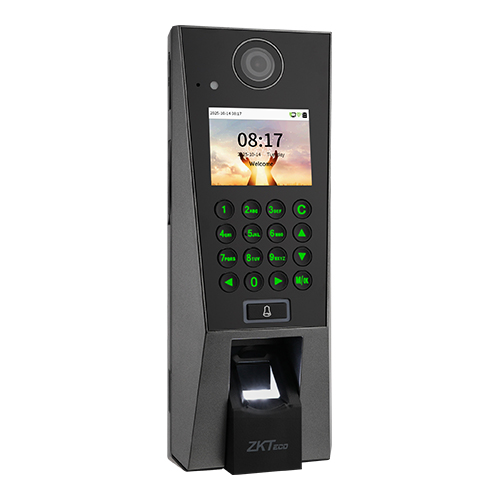

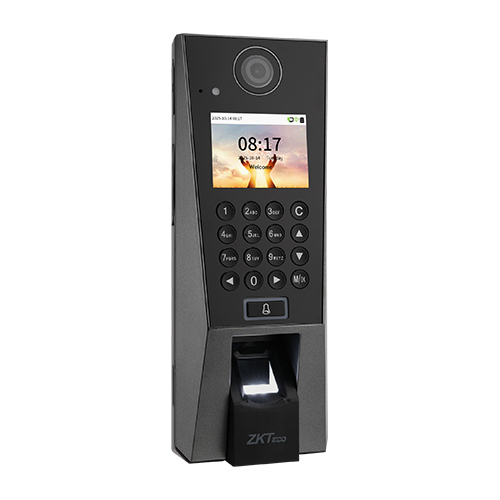

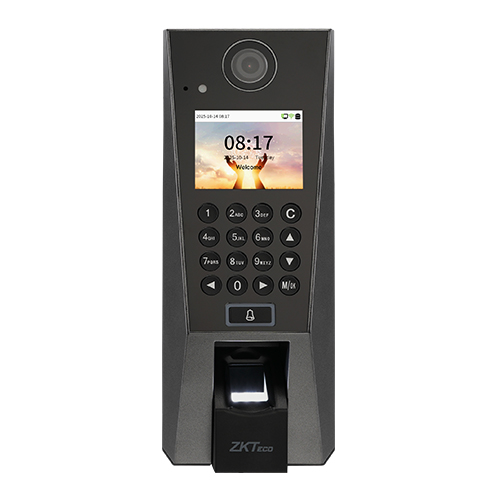

F18 Pro

ZKTeco’s F18 Pro is a standalone biometric access terminal that pairs a 4 MP ultra-wide camera with AI-driven video analytics and cloud-based video intercom via the Yoosee app. It supports multi-factor authentication-fingerprint, RFID, and password-for fast, reliable entry. The camera captures QHD video (2560 × 1440) at up to 15 fps using H.265 compression. A built-in IR illuminator provides up to 5 m visibility in low light, automatically switching to IR black-and-white mode below 2 lux and returning to color above 6 lux.

F18 Pro offers AI-powered detection including person detection, motion detection, vehicle detection, flame detection which delivers realtime, event-driven alerts through the Yoosee app. Event clips can be stored in the Gwell cloud or on a local TF card (up to 256 GB) for hybrid retention and remote playback. The Yoosee app also supports remote door unlocking and video intercom with two-way talking. F18 Pro offers comprehensive connectivity including dual-band Wi-Fi 6, Ethernet, and Bluetooth 5.0 that streamline deployment and mobile provisioning.

Parameters

Model

F18 Pro
Display

2.4"@ TFT Color LCD Screen (720 x 1280)
Camera

4MP CMOS
Operation System

Linux
Hardware

CPU: 1GHz Dual Core
RAM: 128MB; ROM: 256MB
Speaker * 2 8Ω 1W
Microphone *1 (Sensitivity: 42dB ±3dB)
Fingerprint Sensor: ZK Optical Sensor
TF Card: Max 256GB
Authentication Method

Fingerprint / Card / Password (Physical Keypad )
Fingerprint Template Capacity

3,000 (1: N)
Card Capacity

5,000 (1: N)
User Capacity

5,000 (1: N)
Transaction Capacity

100,000
Max. User Password Length

6 to 8 Digits
Biometric Authentication Speed

less than 0.3 sec (Fingerprint)
False Acceptance Rate (FAR) %

FAR≤ 0.0001%
False Rejection Rate (FRR) %

FRR≤ 0.01%
Biometric Algorithm

ZKFingerprint V10.0 / V13.0 (Default)
Card Type

ID & IC Card @ 125kHz & 13.56MHz (Standard)
Communication

TCP/IP*1
Wi-Fi (IEEE 802.11 b/g/n) @ 2.4 GHz
Wiegand (Input & Output)*1
RS485: ZKTeco RS485 *1
RS232: only for Printer*1(Optional)
USB Host*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1
Standard Functions

ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods, Video Intercom(Yoosee), AC PUSH and TA PUSH Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)
FOV

Diagonal: 154.8°, Horizontal: 134.7°, Vertical: 77.6°
Video Intercom and Video Cloud Storage
Video Intercom

Support Yoosee Mobile App (account capacity: 300 devices; share up to 10 users per device)
Communication: Yoosee private protocol
Functions: live view (10 mins per session; max. 2 concurrent viewers), bi-directional talk, remote unlock
Cloud Service

Gwell cloud for video storage and video analytics
Video Storage

Gwell Cloud Service
Video Compression

H.265, 15fps
Visible Range

Up to 5m (Day & Night; Infrared)
Video Resolution

2560 x 1440
Video Viewing Angle

154.8°(Diagonal), 77.6° (vertical), 134.7° (horizontal)
Infrared Supplement Light

Auto infrared light ON: < 2 lux (B/W image)
Auto infrared light OFF: > 6 lux
Visible light mode: ≥ 6 lx (Color image)
Intelligent Video Analytics (IVA)
IVA Camera

Person Detection/ Motion Detection / Vehicle Detection / Flame Detection
IVA Video

Intelligent retrieval, live view (online surveillance: max. 10mins), playback and backup.
(Video Storage: Gwell cloud; local TF card up to 256 GB)
Intelligent IVA Alarm

Person Detection / Motion Detection / Vehicle Detection / Flame Detection
Alarm Delay

Less than 3 sec
Minimum Detection Area

50×50 pixels
Sensitivity Adjustable

N/A
Networking & Interfaces

Wireless: Dual-band WiFi 6 (IEEE 802.11 a/b/g/n/ac/ax), 2.4/5GHz;
Ethernet*1
Bluetooth 5.0
General
Power Supply

DC 12V 3A
Operating Temperature

-10℃ to 45℃ (14 ℉ to 113 ℉ )
Operating Humidity

10% to 90% RH (Non-condensing)
Dimension(L*W*H)

214 mm * 80 mm * 45 mm
Gross Weight

0.75 Kg
Net Weight

0.38 Kg
Supported Software

Software: ZKBio CVAccess / ZKBio Time
Mobile App: Yoosee
Cloud Storage: Gwell
Installation

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box)
Housing Material

ABS (black)
Ingress Protection Rating

N/A
Certifications

ISO14001, ISO9001, CE, FCC, Equivalent to RoHS
Factory ID

AC01-F28H-12
