Parameters

• Model

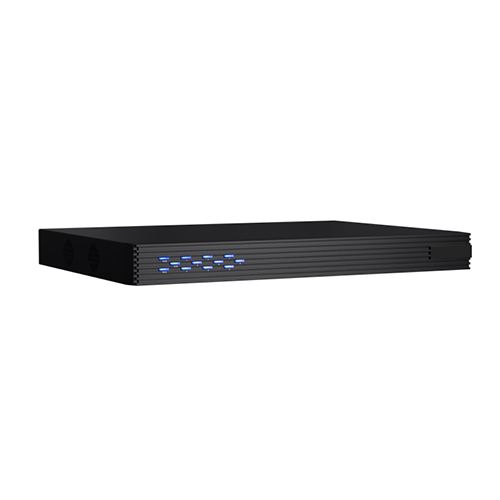

  ZK-DEC-8605-4K

• System

• Main Processor

  Multi-core embedded processor

• Operating System

  Embedded LINUX

• Video

• Video Compression

  H.265 / H.264 / MJPEG

• Input

  1* HDMI / Network Video Sources / Others

• Output

  5*HDMI Output

• Output Resolution

  4K: 3840 *2160@50/60Hz
  5MP: 2592*1944@50/60Hz
  4MP: 2560*1440@50/60Hz
  1080P: 1920*1080@50/60 Hz
  720P: 1280*720@50 Hz/60 Hz

• Audio

• Audio Compression

  G.711A,G.711U and AAC

• Audio Decoding

  Support

• Decoding Resolution

  Up to 8MP (4K)

• Decoding

• Decoding channe

  Up to 125 channels

• Decoding Capability

  7ch*4K@30fps (HDMI 5: 3ch; HDMI 1~4: 1ch each);
  14ch*5MP@30fps (HDMI 5: 6ch; HDMI 1~4: 2ch each);
  20ch*4MP@30fps (HDMI 5: 8ch; HDMI 1~4: 3ch each);
  40ch*2MP@30fps (HDMI 5: 16ch; HDMI 1~4: 6ch each);
  77ch*720P@30fps (HDMI 5: 25ch; HDMI 1~4: 13ch each);
  125ch*D1@30fps (HDMI 1~5: 25ch each)

• Split Screen

  1/4/6/8/9/16/25

• Interoperability

  ONVIF, SDK, API, RESTFUL

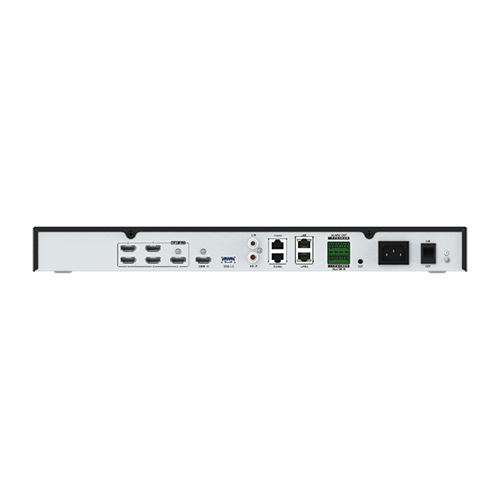

• Interface

• Network Interface

  2*RJ45 interface 10/100/1000Mbps self-adaptive

• Serial Interface

  1*RS232, 1*RS485

• Audio Input/Output

  1/1

• Alarm Input/Output

  6/4

• USB Port

  1*USB Ports (Software recovery, System upgrade, Local video files play )

• Reset Button

  Reset Button

• Power

• Power Supply

  AC 100～240V, 47～63Hz

• Power On/Off Switch

  Yes

• Power Consumption

  ≤45W

• General

• Casing

  1U

• Working Temperature

  -10°C ~ 55°C / 14°F ~ 131°F

• Working Humidity

  10% ~ 90%

• Working Pressure

  below 5000m altitude

• Dimension (L*W*H)

  440*322*47.85 mm

• Net Weight

  ≤ 4.5KG

• Gross Weight

  ≤6KG
