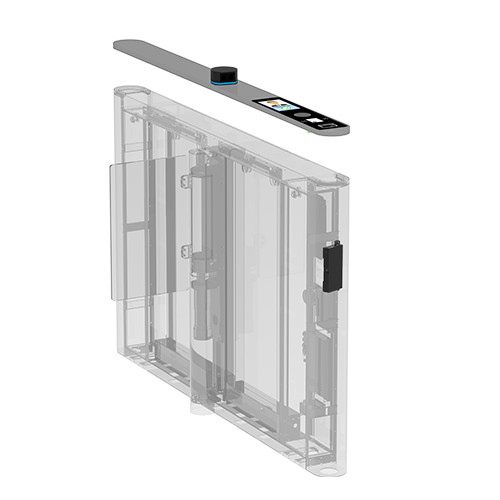

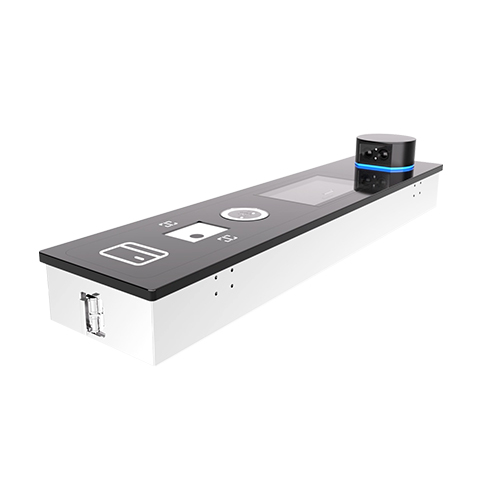

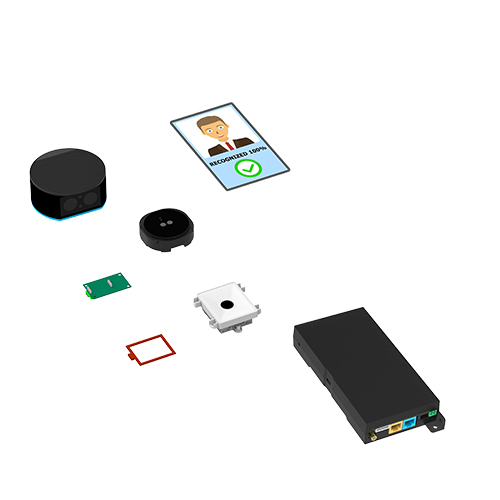

ZKTeco’s multi-biometrics access control modules are a smart and professional access control system for pedestrian passage products. It is integrated with turnstiles. The device consists of several modules, such as the RFID / Face / Palm / QR code recognition module, the LCD display, and the main/sub access control board. Based on the Android system design, it supports over-the-air upgrades for the device's firmware. Moreover, it allows for secondary development and integration through the provided SDK/API.
Model Name
Zophon-S1000
Display
7-inch LCD Screen (1024*600 Pixels) (Optional)
Camera
2MP Binocular Camera (field of view as wide as 118.9°)
Hardware
CPU: Quad-core A55, Up to 2.0GHz
Authentication Method
Face / RFID( standard), Palm / QR Code (optional)
Face Template Capacity
100,000 (1:N)
Palm Template Capacity
50,000 (1:N)
Card/QR Capacity
100,000 (1:N)
Transaction Capacity
1,000,000
Biometric Authentication Speed
less than 0.5 sec (Facial Recognition)
less than 0.5 sec (Palm Recognition)
Touchless Biometric Authentication Distance
50cm to 200cm (Facial Recognition)
5cm to 15cm (Palm Recognition)
False Acceptance Rate (FAR)%
FAR ≤ 0.01% (Visible Light Facial Recognition)
FAR ≤ 0.001% (Palm)
False Rejection Rate (FRR)%
FRR ≤ 0.02% ( Visible Light Facial Recognition)
FRR ≤ 0.17% (Palm)
Biometric Algorithm
ZKFace V3.9 & PalmElite3.3.3
QR code
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code11, Industrial 2 of 5, Standard 2 of 5,MSI etc.2D QR code (dynamic or static): QR / AZTEC/ PDF417/ DATAMATRIX
Communication
TCP/IP*1
NFC (ISO/IEC 14443A)
Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz
Wiegand Input *1
RS485: ZKTeco RS485*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1
Standard Functions
Block list, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Schedule Bell, Multiple Verification Methods
Optional Functions
Palm recognition module, QR Code reader module, LCD display module
Power Supply
24V DC 3A
Operating Temperature
-10°C to 55°C (Indoor application)
Operating Humidity
10% to 90% RH (Non-condensing)
Dimensions
Face recognition module (Φ92mm * 42mm)
Palm recognition module (62mm * 62mm * 18mm)
QR reader module (66mm * 65.13 * 22mm)
RFID reader module (37.75mm * 49.80mm * 1.6mm)
LCD display module (95.7mm * 162.5mm * 3mm)
Access control module (94.34mm * 196mm * 29mm)
Net Weight
Face recognition module: 30g (single side) 40g (double side)
Palm recognition module: 80g
QR reader module: 20g
RFID reader module: 10g
LCD display module: 80g
Access control module: 250g
Supported Software
ZKBio CVSecurity
Installation
Fasten with screws
Housing Material
Face recognition module: ABS plastic
Palm recognition module: aluminum alloy
LCD display module: N/A
RFID reader: N/A
RFID reader module: ABS plastic
Ingress Protection Rating
N/A
Certifications
CE, FCC, ISO9001, ISO14001, ISO20000
