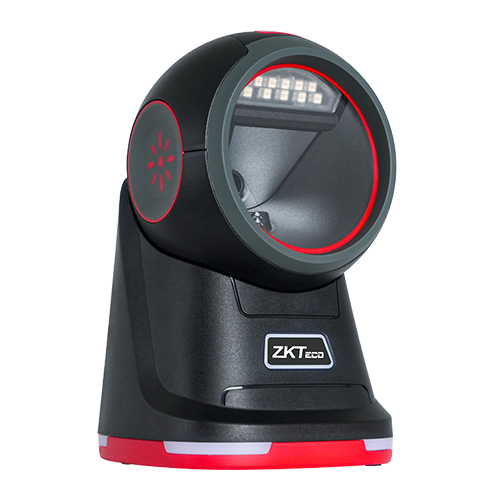

ZKB209 is a high-performance 2D barcode multiline scanning platform with advanced image scanning technology and a durable and straightforward appearance. It is the best choice for you to improve your work efficiency.
Scanning Performance
Scan Mode
Automatic Scanning
DPI
1024 x 1024 pixels
Decode Capabilities
1D: Codabar, Code39, Code32Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBarLimited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post;
2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
Motion Tolerance
4 m/s
Scan Range
0-280mm (EAN13 13mil 90%PCS)
Field of View
Horizontal: 44°; Vertical: 34
Scan Angle
Turn±360°, Elevation±65°, Declination±65°
Illumination
630nm red LED
Prompt Method
Indicator light, Buzzer (Adjustable tone and volume)
Button
Support manual reading mode
Interface
RJ45
Data Communication Support
USB (Drive-Free), RS232
Physical Parameters
Dimensions (L*W*H)
97 * 98 * 159 (mm)
Weight
333g
Material
ABS + PC
Cable
2m
Environmental Parameters
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C
Relative Humidity
5% to 95%RH (non-condensing
Drop Tolerance
Designed to withstand multiple drops at 1.5 m to concrete ground
Ambient Light Immunity
0 to 100000 Lux
Electrical Parameters
Input Voltage
DC 5V±5%
Working Current
240mA
