Central Command Center is established by the city administration of Surabaya in 2016, integrating all civic services including Satpol PP, Bakesbangpol and Linmas, Hygiene and Parks Service, Transportation Agency, Public Works Agency of Highways and Extermination, ambulance and fire services. All services can be accessed by dialing 112 number.Surabaya Mayor Tri Rismaharini said the function of the Command Center is to receive emergency complaints from the public through the call center number 112 and monitor the city’s condition through CCTV cameras.
Project Site: Central Command Center, Surabaya, East Java, Indonesia
End User: Central Command Center of Surabaya
Client Requirements
Centralized Real-time Monitoring
There are 106 doors in the building which need access control. As the Central Command center consists of various civil services that contain citizens’ personal information and privacy, it is ultimately important to secure the building from any illegal access in order to avoid violations of citizens’ privacy or any other form of loss. Conventional access control generally verify people and assist security staffs to notice illegal access attempts, however there are 106 doors in the building which need access control, thus making manual monitoring of all access points’ control extremely difficult. Our client demanded a more effective method to centrally manage all access points.
Configurations
System | Device Name | Device Model |
Entrance Control | Access Controller | InBio 260 |
Access Controller | InBio 460 |
Access Control Card Reader | ProID 20 |
Access Control Software | ZKBioSecurity 3.1 |
Technical Features
• All doors of the building are deployed with ZKTeco’s ProID 20 Access Control Card Readers.
• A Mifare card is issued to each staff with their personal information stored.
• All staffs on duty are required to scan their cards when entering their workplaces.
• They are only granted access upon successful verification.
• All card readers are connected to the InBio 260 and Inbio 460 Access Controllers. Via the access controllers, all are thus connected to and centrally managed by the ZKBioSecurity 3.1 Access Control Software. Security staffs to real-time monitor all situations of all access points and obtain access control data anytime of all 106 doors.
Function Description
• The ProID family of card readers is designed to offer card technologies options to customers such as 125KHz EM,13.56MHz MIFARE, DESFire, FeliCa or Legic.
• With a robust all-weather protection and a beautiful modern design, the ProID family is the best choice for indoor or outdoor applications.
• Infrared technology enables the device to function automatically when fingerprints are detected.
• InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modication of network parameters directly and easily.
• InBio controller firmware can be upgraded in the field. Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card Data is preserved if power is lost. InBio continues to opperate if network conection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxilary relays can be used for additional control and interface to lights, alarms,annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
• InBio controllers come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture. Anti-Passback, First-Card Opening,Multi-Card Opening, Duress Password Entry, and Auxilary Input/Output Linkages are built into controller firmware.
• Free SDK is available for integrators and OEM′s to integrate the InBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize InBio firmware to meet an custom requirements.
•ZKBioSecurity, the “All in One” web security platform developed by ZKTeco has become more powerful than ever, featuring Superb security functions such as HTTPS encrypted communication, doors emergency lockdown, up to 66 bits flexible card format, personnel multi-card support, smart data analysis and the latest add on – the Patrol Module –to effciently manage security guards patrol tours using the existing access control readers, reducing costs and ensuring patrol tasks.

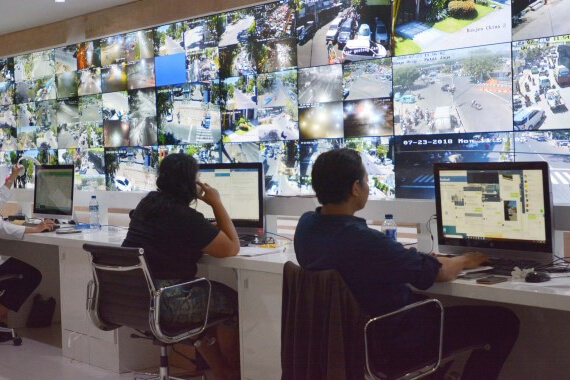

On-site Photo
