SBTL8000

SBTL8000 Series

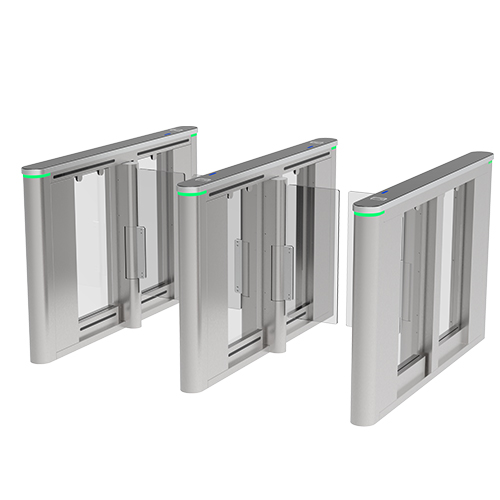

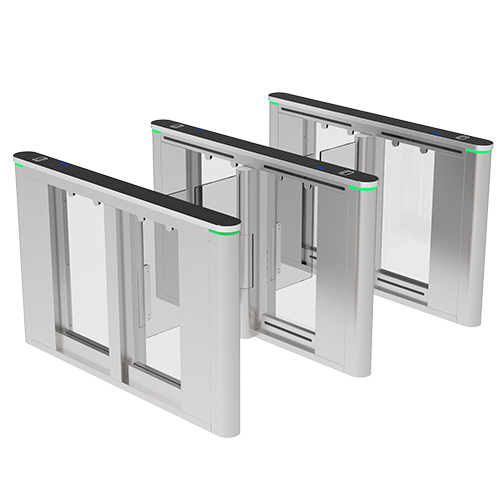

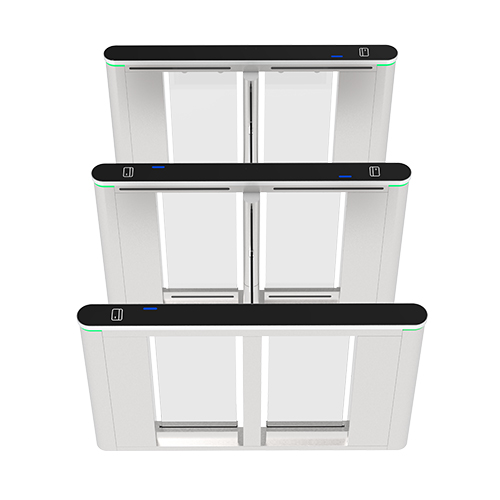

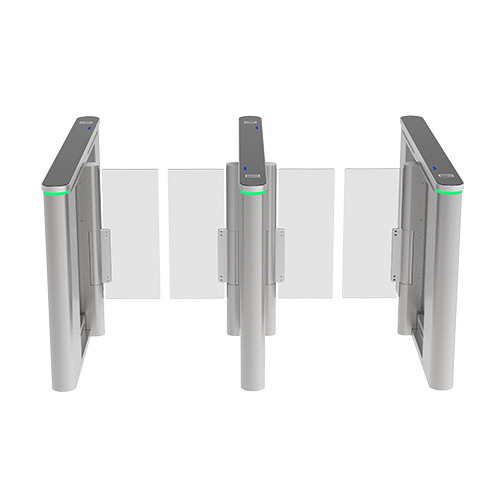

The ZKTeco SBTL8000/SBTL8200 series swing barrier provides advanced access control, blending robust security with an efficient passage experience. The transparent acrylic swing barriers and full aluminium top cover with tempered glass lid create a modern, premium aesthetic, and the SUS304 stainless steel chassis ensures durability and long-term stability.

What sets this series apart is its comprehensive integration of safety and deployment efficiency. Driven by a high-precision servo motor, the swing barrier provides smooth movement with an adjustable opening and closing time of 0.3 to 0.6 seconds, enabling efficient passenger flow while maintaining strict access control. The SBTL8000/SBTL8200 series is equipped with 12–18 pairs of infrared sensors for precise pedestrian detection and provides an adjustable lane width of 660 mm (standard) to 1000 mm (optional), accommodating diverse accessibility needs. The swing barrier is pre-assembled for rapid installation and integrates seamlessly with ZKBio CVAccess or ZKBio CVSecurity to form a comprehensive access control solution.

Parameters

Model Name

SBTL8000 Series
SBTL8200 Series
Audio Indicator

Internal buzzer
Visual Indicator

Top LED indicator:
Blue=Door closed / standby
Green=Door open
Red=Door close / alarm
Display

N/A
Lane Type

SBTL8000 Series: Single Lane
SBTL8200 Series: Dual Lane
Lane Width (mm)

660mm (Standard) / 1000mm (Optional)
Barrier Movement Type

Swing
Barrier Material

Transparent Acrylic
Barrier Size

715mm * 295mm (L*W)
Motor

Servo motor
Movement Speed

Average 0.3s to 0.6s per movement (Adjustable open / close timing)
Movement Accuracy

N/A
Clutch

Equipped
Lid Material

Full aluminium top cover with tempered glass
Lid Options Authentication Methods

Undermount options: QR Code (Dynamic / Static) / RFID
Post mount options: Facial Authentication
Chassis Material

SUS304 stainless steel
Chassis Colour

Metallic gray
IR Sensors

12 pairs (Standard)
18 pairs (Optional)
Motherboard Function

System configuration, access mode configuration
Motherboard Communication

Fire alarm port (Relay)*1, RS485 port*1
Controller

Not equipped, C3 series controller/ InBio series controller (optional).
3rd-party controller subject to turnstile chassis space.
Credential Options

Post mount RFID reader: (support model: Pro ID Series, KR Series)
Post mount QR code reader: QR500
Flow Rate

Facial Authentication: 30 passengers per minute
QR Code(Dynamic / Static): 30 passengers per minute
RFID: 35 passengers per minute
Accessibility

Adult, children and elderly (with care), Disability (with care)
Power Supply

AC 100V–220V,50/60 Hz
Power Rating

40VA (Standby); 120VA (Operation)
Fire Signal

Input for voltage-free contact
Noise Level

Less than 60 dB
MTTR

60 minutes
MCBF

10 million
Weight

SBTL8000 Series: 220kg
SBTL8200 Series: 130kg
Dimensions ( L*W*H )

1613*134*1017.5mm (standard ;IPX4 protection rating)
1613*134*1031.5mm (optional ; IP65 protection rating)
Dimensions of Product Parts with Packaging ( L*W*H )

SBTL8000 Series: 1770*370*1125mm (2 boxes)
SBTL8200 Series: 1770*370*1125mm (1 box)
Operating Temperature

−20°C to 70°C
Operating Humidity

0% to 95% RH (non-condensing)
Certifications

CE, FCC
Ingress Protection Rating

IPX4 for water resistant(standard);
IP65 for dustproof and waterproof(internal componenets customized upon customer
request)
Note: Please be aware that selecting the IP65 ingress protection rating will increase the
overall device height by 14mm compared to the standard IPX4 configuration.
Supported Software

ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller)
Safety Features

Power off unlock device/ Fire alarm active door release
Security Features

Anti-tailgating, anti-pinch
Product Delivery

Pre-assembled for easy installation
Application Environment

Indoor / outdoor
Site Preparation

Flat and level finished floor (optional base plate for unfinished floors)
Security Level

Middle
Emergency Mode

Swing barrier unlocks automatically
Packing Material

Wooden Box
