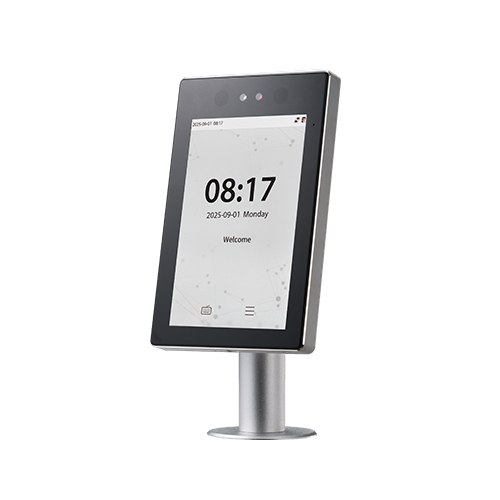

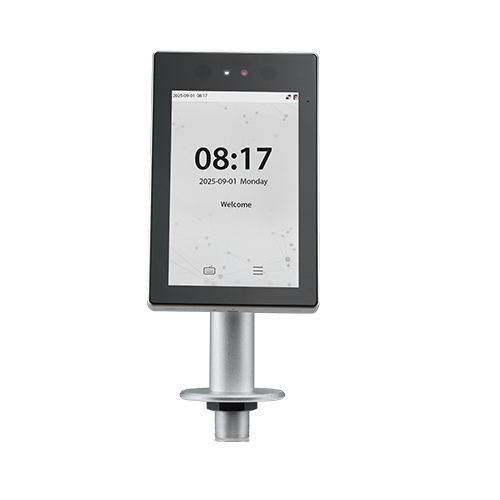

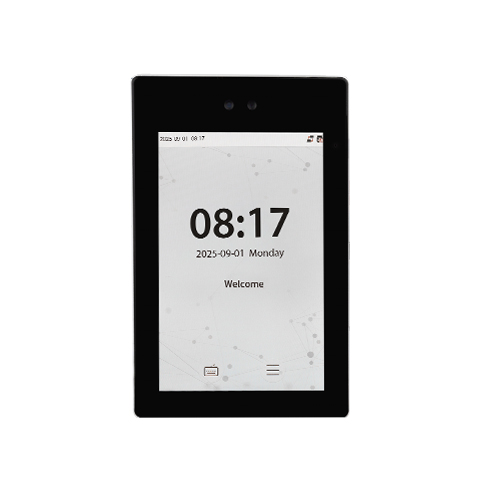

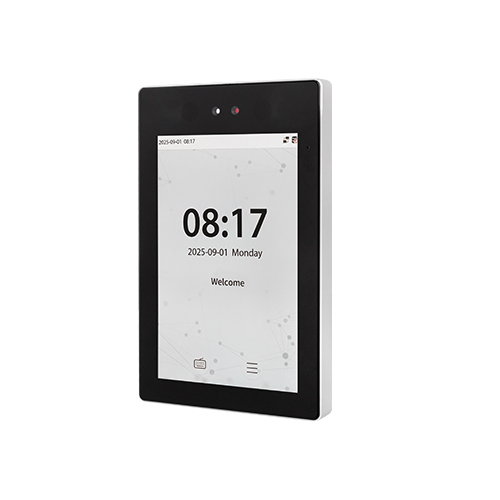

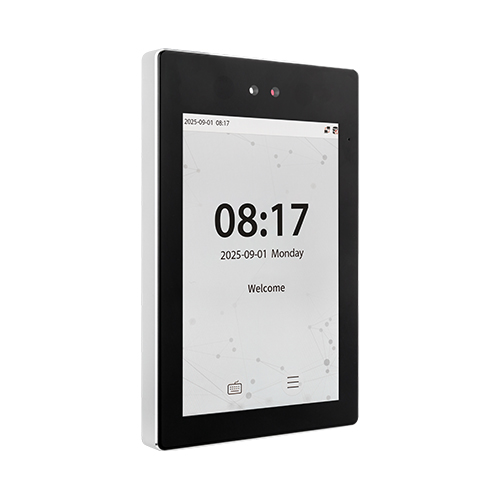

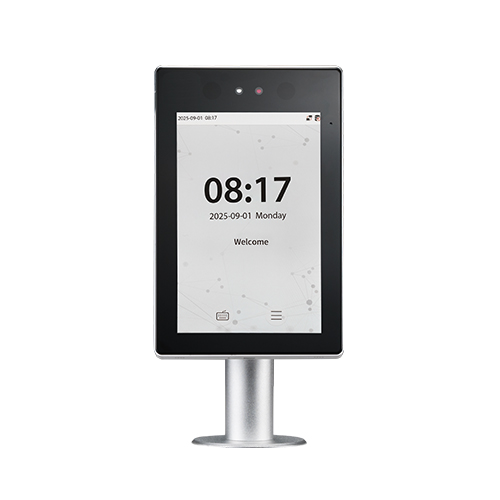

ProFace X a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. It’s powered by the latest ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm to boost up the performance in all aspects.
With its powerful core and the latest facial recognition algorithm, the ProFace X facial recognition capability has reached a new height in the biometrics industry with a maximum of 100,000 facial templates, facial recognition speed less than 0.3 sec per face, ultimate anti-spoof ability against almost all types of fake photos and videos attack.
Other than the powerful core, ProFace X is also equipped with the latest face capture system, which enables the terminal to recognize faces under extreme strong light conditions (50,000 lux), and a microwave detector to precisely evaluate the distance between the user and the device for waking up the terminal.
ProFace X comes with a robust design that can work in extreme weather conditions from -30°C to 60°C (-22°F to 140°F) ; The IP68 dust and waterproof standard and IK04 protection standard also enhance its outdoor durability.
ProFaceX supports video intercom via the mobile App ZSmart. Also, the ProFace X integrates with the ONVIF video protocol to connect to the ONVIF NVR for video surveillance and recording. Moreover, ProFace X supports SIP Protocol connect to the indoor unit.
Face Capacity
30,000 (1:N) ;
100,000 (Optional)
Palm
5,000 (Customized)
Users / Card Capacity
50,000
Transaction Capacity
1,000,000 (Optional 2,000,000)
User Photo Capacity
30,000
Event Photo Capacity
10,000
Compatibility
Security Relay Box
Wiegand / RS485 Slave Reader with FP / RFID / Barcode / QR-code
Software: ZKBio CVSecurity
Mobile App: ZSmart (Optional)
Hardware
1GHz Dual Core Customized Computer Vision CPU
1G RAM / 8G Flash
8" (400lux) IPS Touch LCD
125KHz EM Reader / 13.56MHz MF (Optional)
2MP WDR Low Light Camera
Adjustable Light brightness LED
Hi-Fi Voice
Microphone
Distance Detection Sensor
Reset Button and Tamper Switch
Access Control Interface
Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensorr
Special Function
IP68 & IK04
0.3s High Speed Face Verification
Live Face detection
Communication Https Encrypted Optional
Event Snapshot
Video intercom
ONVIF Protocol (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A)
SIP ProtocoI (Compatible with VT07-B01,Optional)
Standard Function
Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm
Communication
TCP / IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485* / RS232*
Additional Info
Algorithm
ZKFace 3.9 & ArmaturaPalm(Customized)
Operating Temperature
-30°C ~ 60°C (-22°F~ 140°F)
Operating Humidity
≤ 93%
Storage Temperature
-40°C ~ +65°C
Storage Humidity
≤ 93%
Net Weight
853 g
Dimension
227 * 143 * 26 mm (L*W*D)
Power
Operating Voltage
12V DC
Current Draw
< 2,000 mA
(Silver and above members can download after logging in)
ProFace X_Datasheet_202406
Datasheet
712.65KB
2024-06-26
ZK_ProFace X Series UM_EN_v1.1_20231103
User Manual
8.17MB
2024-01-11
ProFaceX Quick Start Guide V1.2_20230731
Quick Use Guide
7.64MB
2023-08-14
Green Label Introduction Guide_21Nov2022
Others
14.69MB
2022-11-22
A&E Specs ProFace X Series _20210611
A&E Specifications
1.36MB
2021-07-14
Green Label Software Selection Guide
Guideline
1.48MB
2020-03-25
Green Label Hardware Selection Guide
Guideline
441.19KB
2020-03-25
* Note: ProFace X with the optional 100,000 faces capacity, it does not support the following features: photo saving function, video intercom function, palm recognition function.
