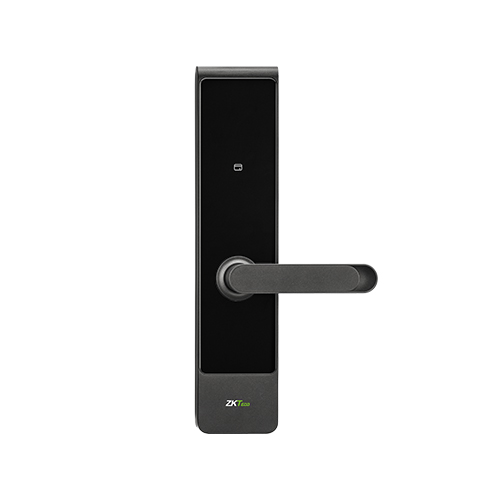

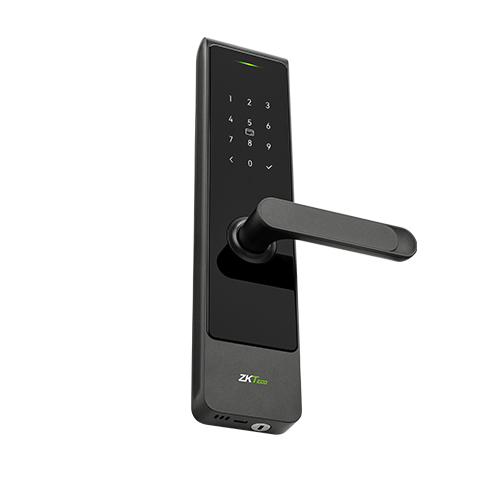

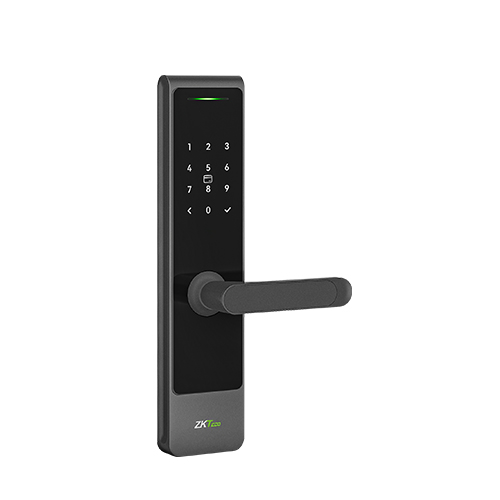

SL03-T420H is a ZigBee digital lever mortise lock specially designed for the apartment scenarios. In this new generation of smart lock products, ZKTeco’s T4 smart lock series bring a modern and distinctive family-style industry design, combining an aluminum alloy housing and a 2.5D tempered glass panel.
To ensure robust physical security, the standard mortise lock is designed with an anti-card auxiliary latch and a deadbolt. Users can easily lift the handle to lock the door from inside or outside. Additionally, the door lock is equipped with a built-in detector, enabling the tamper-alarm function for enhanced protection.
Powered by the reliable Zigbee technology, the door lock can be remotely controlled and monitored in real time, significantly improving management and maintenance efficiency. More importantly, the Zigbee technology shows a better performance in terms of low power consumption, stable network connectivity and cyber security. SL03-T420H will be an ideal choice for apartments, dormitories and short-term rentals, offering a more reliable, secure and convenient lifestyle.
Material
Housing Material
Aluminum Alloy
Color Options
Matt Black, Space Gray
Front Panel
Tempered Glass (2.5D edge processing)
Touch keypad (12 digits)

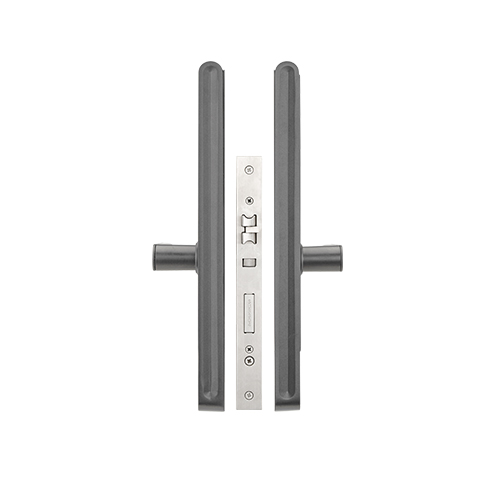

Mortise Lock
Type
European Standard
Backset
55 mm
Axe Distance
72 mm
Square Spindle
7.8 mm
Faceplate (H×W)
24×235 mm; squared standard
Technical
Unlocking Methods
Passcode (dynamic/ periodic) ; Card (IC/ NFC)
Mobile HTML5 Links ; Mechanical Key.
Capacity
User: 100; Passcode: 100; Card: 100;
Local Records: 500
Card Reader
IC Card @13.56 MHz
NFC Supported (ISO/IEC 14443A)
Audio Prompt Language
English, Spanish
Indicator
Green (access granted)
Red (Verification failed)
Blue (OTA update)
White Light (Keypad backlight)
Wireless Communication
Zigbee 3.0 (IEEE 802.15.4)
Emergency Power
USB Type-C Interface, DC 5V
Power Supply
8 x AA Alkaline Batteries (Not Provided)
Battery Life
approximately 2.5 years
Supported Software
ZKBio CVSecurity SmartLock
Door Compatibility
Door Type
Wooden Swing Door
Door Thickness
35 to 60 mm (standard)
Opening Direction
All Direction (reversible lever design)
General
Net Weight
2.5 kg
Gross Weight
3.0 kg
Product Dimensions (H×W×T)
Exterior: 330.9×75.2×25.3 mm
Interior: 330.9×75.2×24.5 mm
(* Lever not included)
Package Dimensions (L×W×H)
225.0×130.0×430.0 mm
Operating Temperature
-20°C to 55°C (-4°F to 131°F)
Operating Humidity
10% to 90% RH (Non-condensing)
Certifications
CE, FCC
Standard Functions
Unlock, Temporary Passcode (dynamic, periodic), Anti-Peeping Codes (up to 20 digits), Passage Mode, Tamper Alarm, Low Battery Alarm, Continuous Authentication Error Alarm,
Firmware OTA
Package Contents
Exterior Assembly, Interior Assembly, Mortise Kit, IC Card * 2, Mechanical Key * 2, Studs &
Screws Kit, Installation Template, Installation Guide
